Bobcat T66 Compact Track Loader Specs
Key Specifications
5-Link Torsion Suspension Undercarriage Optional
Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Suspension Seat Standard
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Not Applicable
Ride Control Optional
Horn Standard
Cab Enclosure Optional
Adjustable Seat Standard
Sound Option Optional
Rear Window Standard
Top Window Standard
Seat Belt Standard 2-Point Lap Belt and Optional 3-Point Shoulder Belt on Two-Speed Models
Spark Arrestor Muffler DOC
Lift-Arm Support Standard
Horsepower 74 hp
Ground Pressure (Rubber) 5.9 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Joystick Control Optional
Fuel Tank 28.3 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Performance
Tipping Load 7000 lb
Travel Speed 7.2 mph
Travel Speed (2-speed option) 10.2 mph
Ground Pressure (Rubber) 5.9 psi
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine yes
Dimensions
Length 134.9 in
Length without Attachment 107 in
Length with Standard Bucket 134.9 in
Width 67 in
Width (with bucket) 68 in
Height 80.5 in
Height with Operator Cab 80.5 in
Height to Bucket Hinge Pin 120 in
Reach @ Maximum Height 36.7 in
Turning Radius 81.5 in
Length of track on ground 54.3 in
Track Width 12.6 in
Track Width - Optional 15.7 in

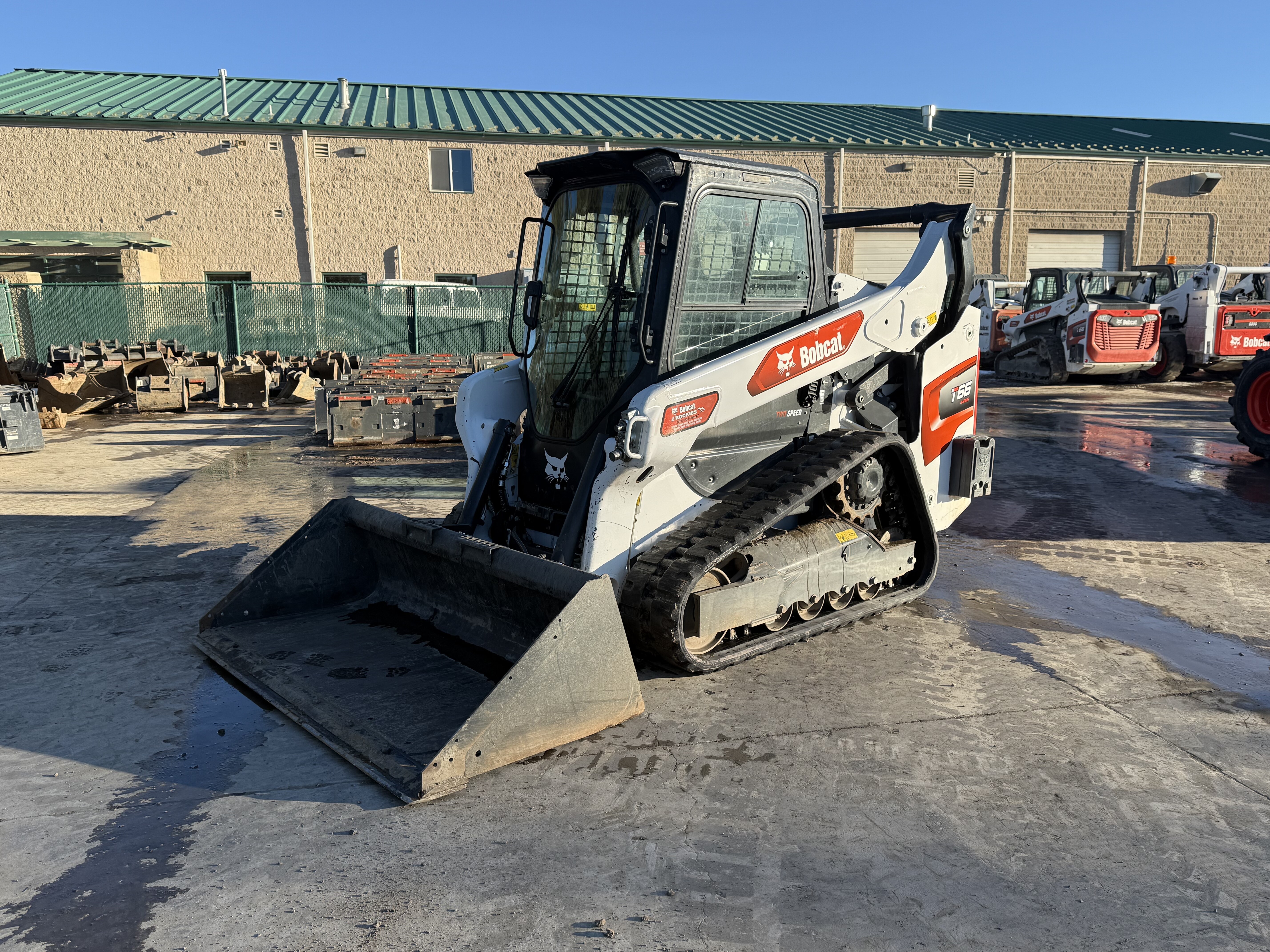

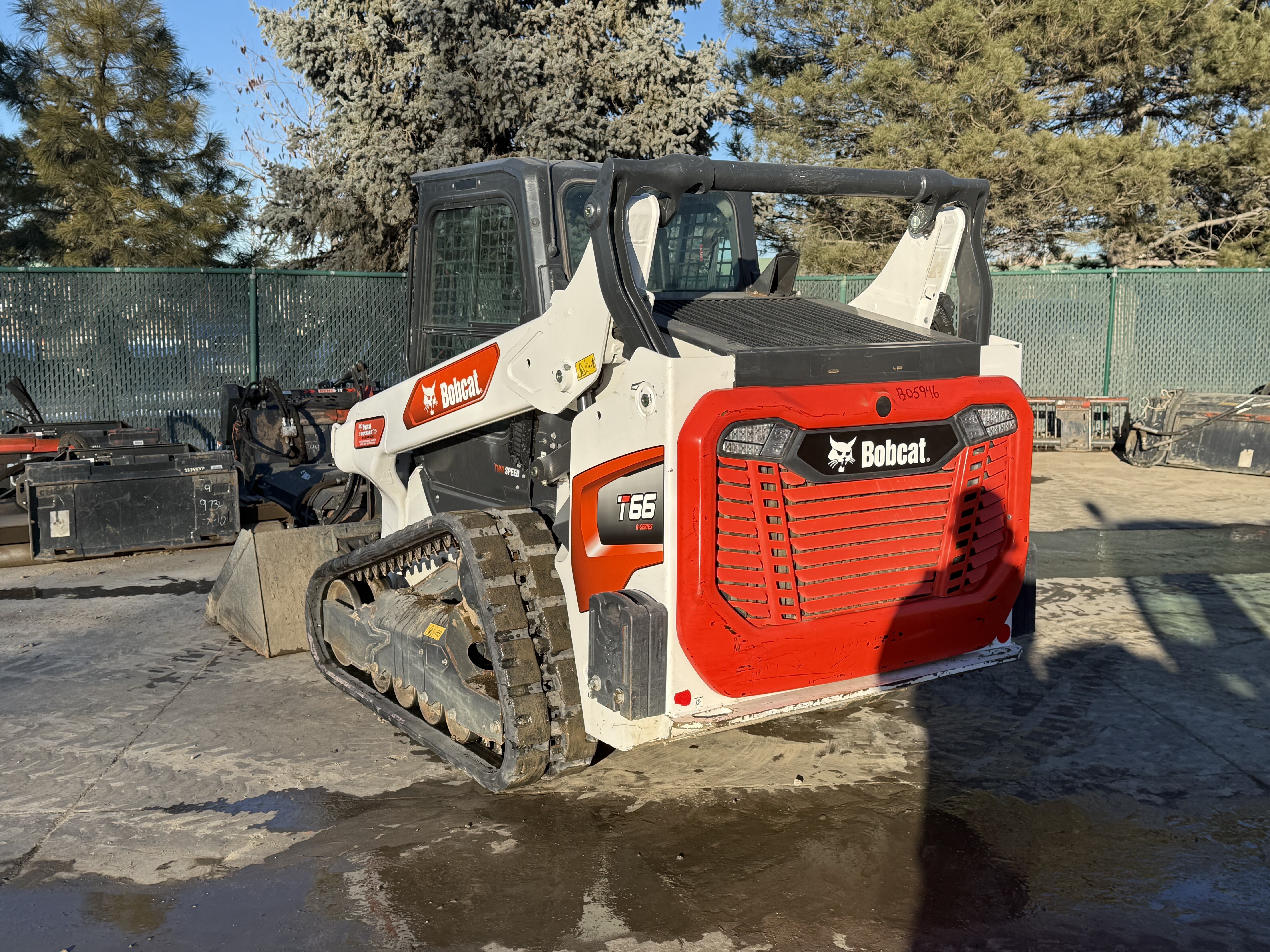

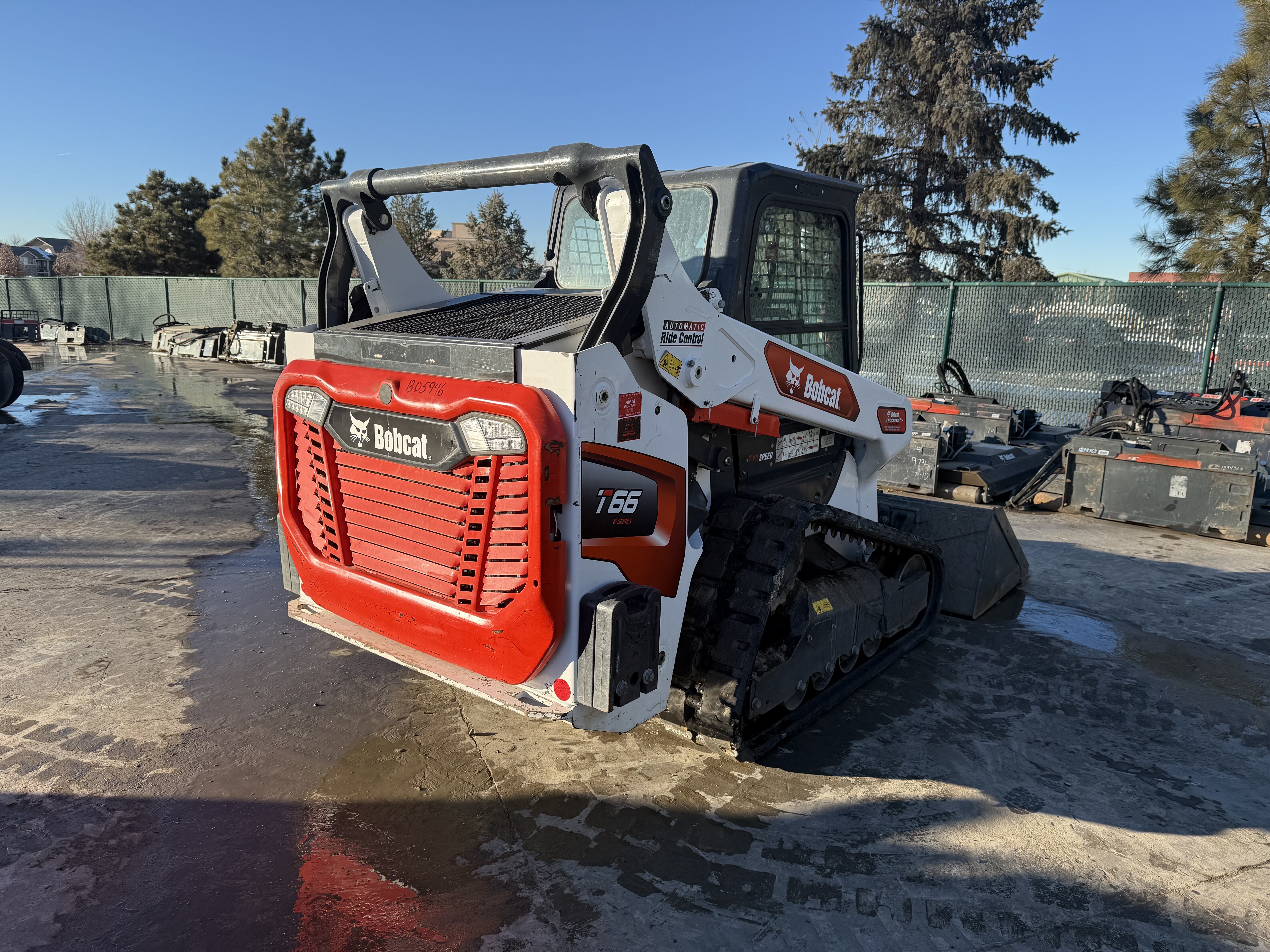

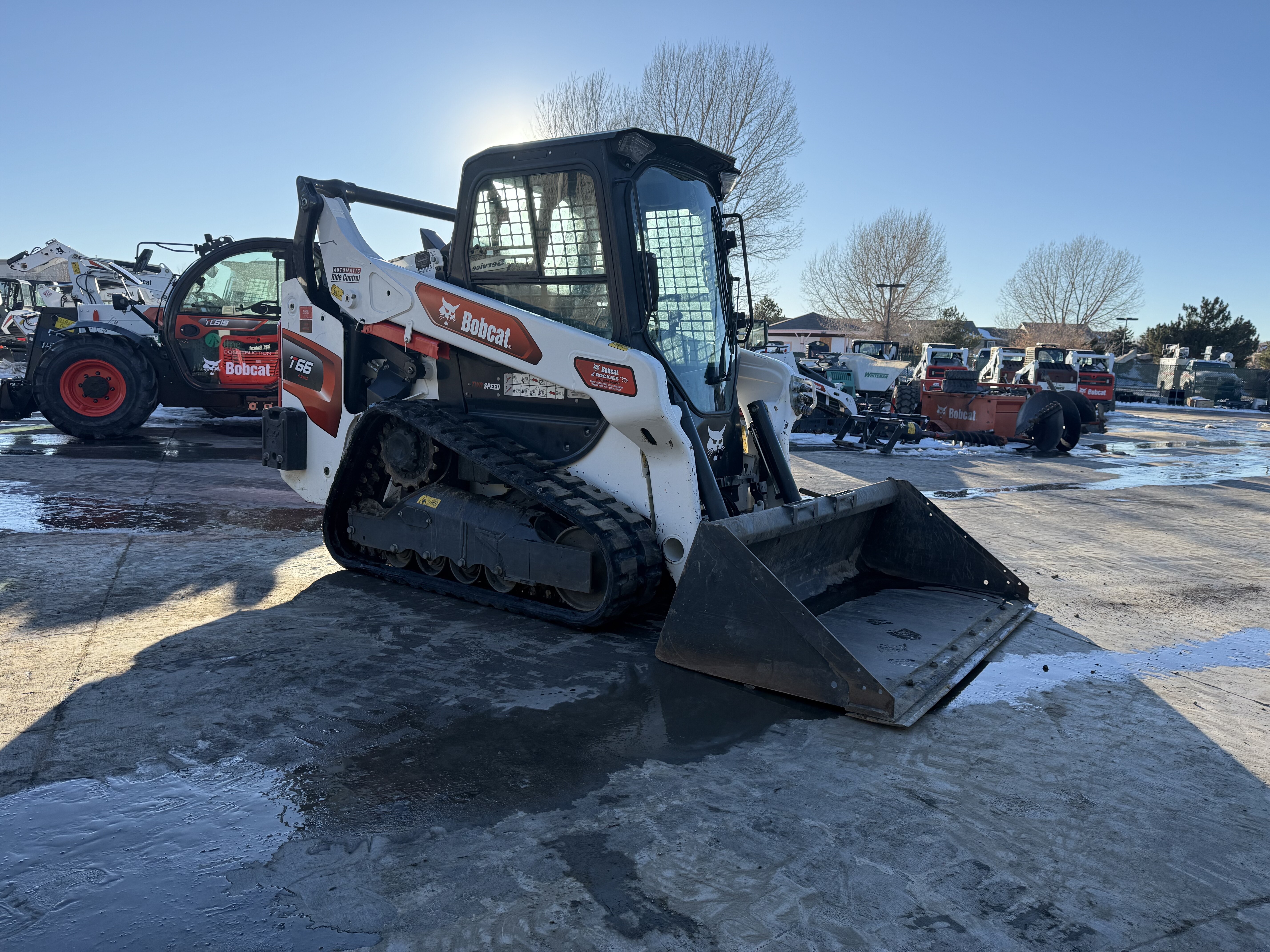

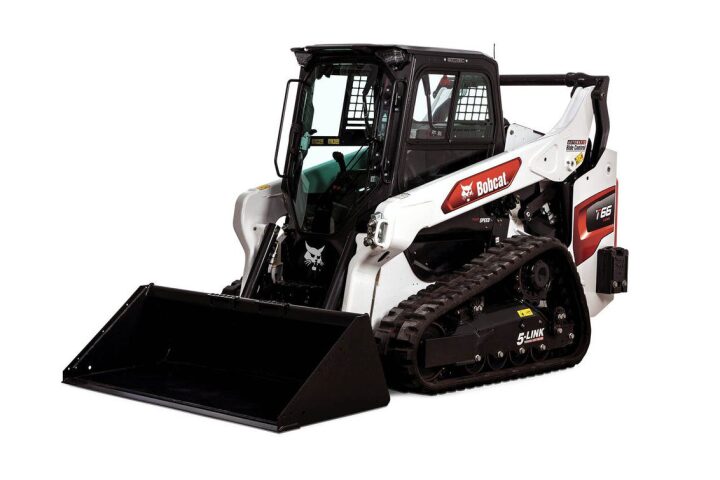

2022 T66-R BOBCAT COMPACT TRACK LOADER
