$96,195

$71,700

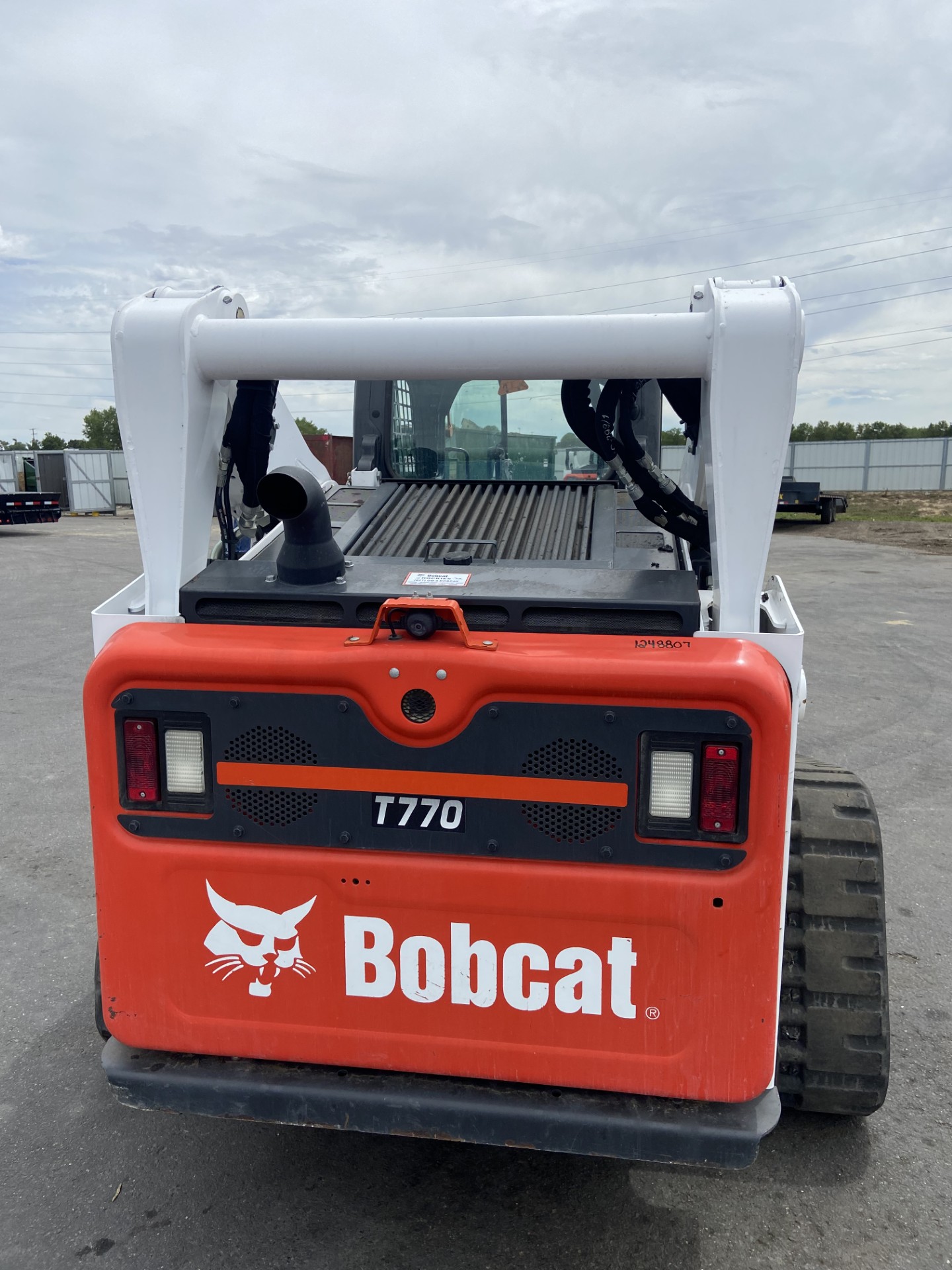

2021 T770-U BOBCAT COMPACT TRACK LOADER

Deluxe Harness Accessory Package, Performance Package P67, Comfort Package C37, High Flow, Selectable Joystick Controls, Deluxe Heat / HVAC Cab, 2-Speed, Air Ride Seat, Power Bob Tach, Deluxe Panel, Bucket Position Valve, Horn, Roller Suspe

872.7

Hours

AT6330777

Serial #

1248807

Stock #

Bobcat T770 Compact Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Operating Lights Standard
Suspension Seat Standard
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Optional
Ride Control Optional
Horn Standard
Cab Enclosure Optional
Adjustable Seat Standard
Sound Option Optional
Rear Window Standard
Top Window Standard
Seat Belt Standard
Spark Arrestor Muffler Standard
Horsepower 92 hp
Rated Operating Capacity (ISO) 3,475 lb
Operating Weight 10515 lb
Ground Pressure (Rubber) 4.2 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 36.6 gal/min
Joystick Control Optional
Fuel Tank 43.8 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 36.6 gal/min

Performance

Rated Operating Capacity (ISO) 3,475 lb
Operating Capacity (50% of Tip) 4960 lb
Tipping Load 9929 lb
Operating Weight 10515 lb
Travel Speed 6.6 mph
Travel Speed (2-speed option) 10.7 mph
Ground Pressure (Rubber) 4.2 psi
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 92 hp
Turbocharged Engine yes

Dimensions

Length 141.6 in
Length without Attachment 114.3 in
Length with Standard Bucket 141.6 in
Width 78 in
Width (with bucket) 80 in
Height 81.3 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 131.4 in
Reach @ Maximum Height 35.2 in
Turning Radius 88 in
Length of track on ground 63.7 in
Track Width 17.7 in

2021 T770-U BOBCAT COMPACT TRACK LOADER
