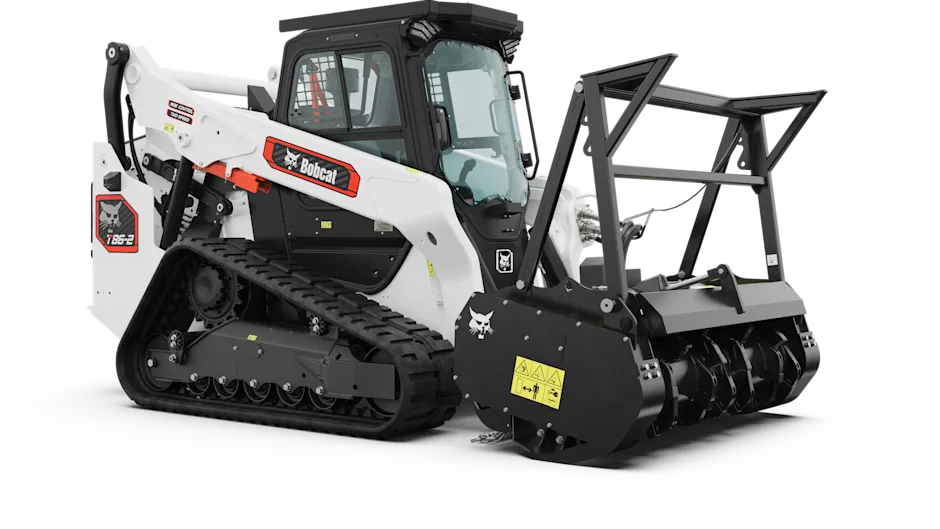

Bobcat Pro T86-2 Compact Track Loader

The Bobcat® Pro T86-2 compact track loader is built for the most demanding environments like forestry, road construction, demolition and more. It combines maximum lift height, powerful hydraulics, premium cooling performance and advanced control, delivering strength and precision in a compact machine.

115 hp

Horsepower

3700 lb

Operating Capacity

12104 lb

Operating Weight

Bobcat Pro T86-2 Compact Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 115 hp
Rated Operating Capacity (ISO) 3700 lb
ROC Solid Undercarriage 3925 lbs
Operating Weight 12104 lb
Auxiliary Std Flow 23 gpm
Auxiliary High Flow 36.6 gpm
Aux System Pressure 3500 psi
Aux System Pressure (Super) 4061 psi
Auxiliary Super Flow 42 gpm
Fuel Tank 31.6 gal
System Relief @ Quick Couplers 3500 psi

Performance

Rated Operating Capacity with Torsion 3700 lbs
Rated Operating Capacity 200 lb. Counterweight 4075 lbs
Rated Operating Capacity 300 lb. Counterweight 4225 lbs
ROC Solid Undercarriage 4150 lbs
Tipping Load 11214 lbs
Operating Weight 12104 lbs
Travel Speed 5.5 mph
Travel Speed (2-speed option) 10.7 mph
Ground Pressure (Rubber) 4.6 psi
Battery Size 1000A CC
Engine-High Idle 2600
Engine-Low Idle 1050
Pre-Heat Yes

Dimensions

Ground Pressure (Standard Tracks) 4.6 psi
Length with Standard Bucket 148.9 in
Length without Attachment 120.4 in
Width 78 in
Height 83.1 in
Height to Hinge Pin 144 in
Reach @ Maximum Height 34.5 in
Turning Radius 85.1 in
Length of track on ground 66.3 in
Track Width 17.7 in
Track Width - Optional 17.7 in

Bobcat Pro T86-2 Compact Track Loader Features

Integrated In-Machine Cooling

Integrated In-Machine Cooling

Industry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It’s built to support consistent output without overheating when the pace of work stays high.

Non-DPF Engine

Non-DPF Engine

Engines meet emissions requirements without a diesel particulate filter (DPF), eliminating the need for time-consuming regeneration.

Two-Speed Travel

Two-Speed Travel

Spend less time traveling across the jobsite or between jobs with 2-speed standard on Pro models. Move faster—and get the job done sooner.

Precision Drive Software

Precision Drive Software

Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.

Four Drive Modes

Four Drive Modes

Balanced, Agile, Dynamic and Charged drive modes let you tailor machine drive response to your working style and the task at hand.

Jobsite Companion

Jobsite Companion

Available in the advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.

Bobcat Sense Detection Systems

Bobcat Sense Detection Systems

Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view.

Bobcat View Camera Systems

Bobcat View Camera Systems

Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
