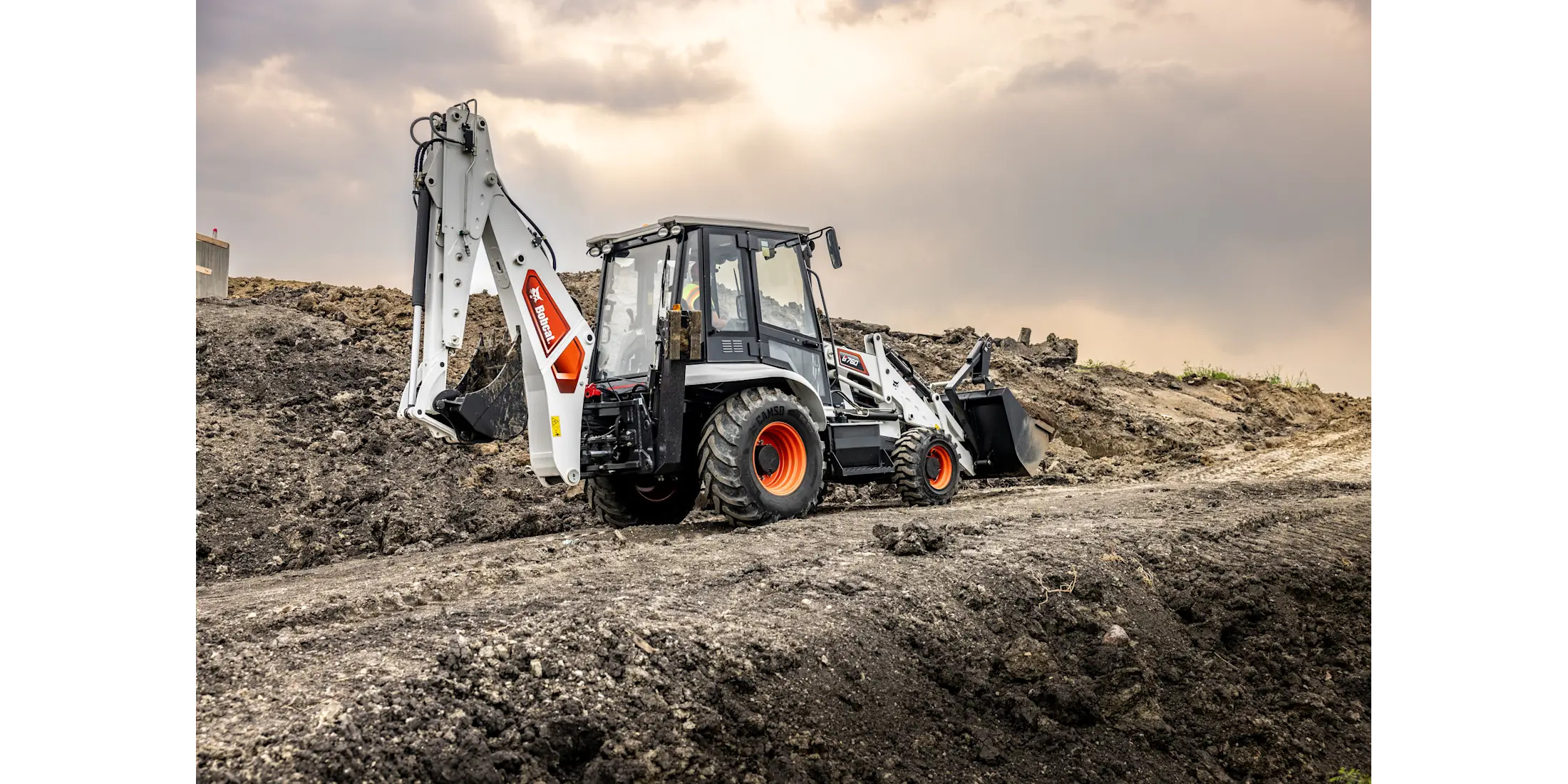

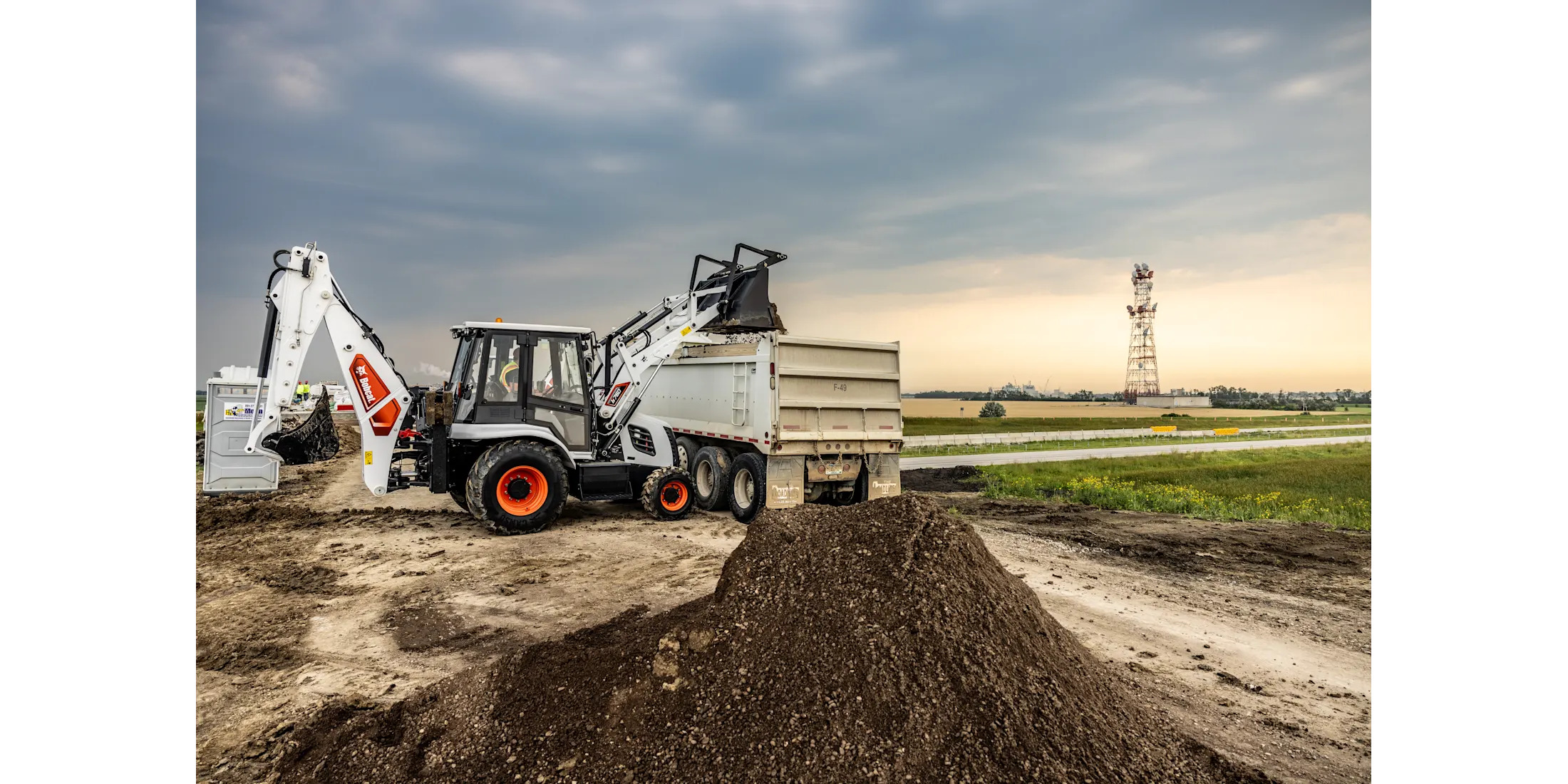

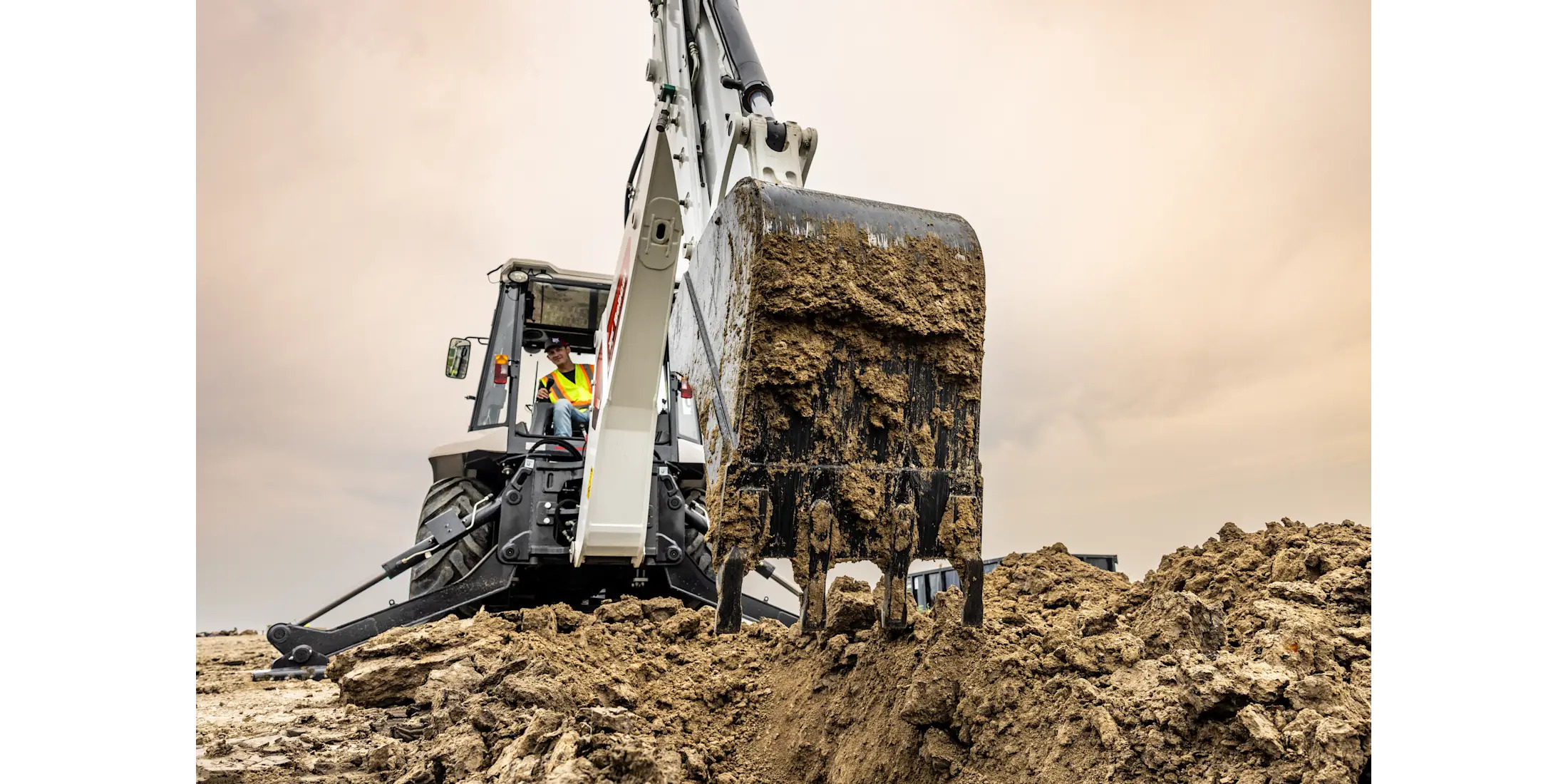

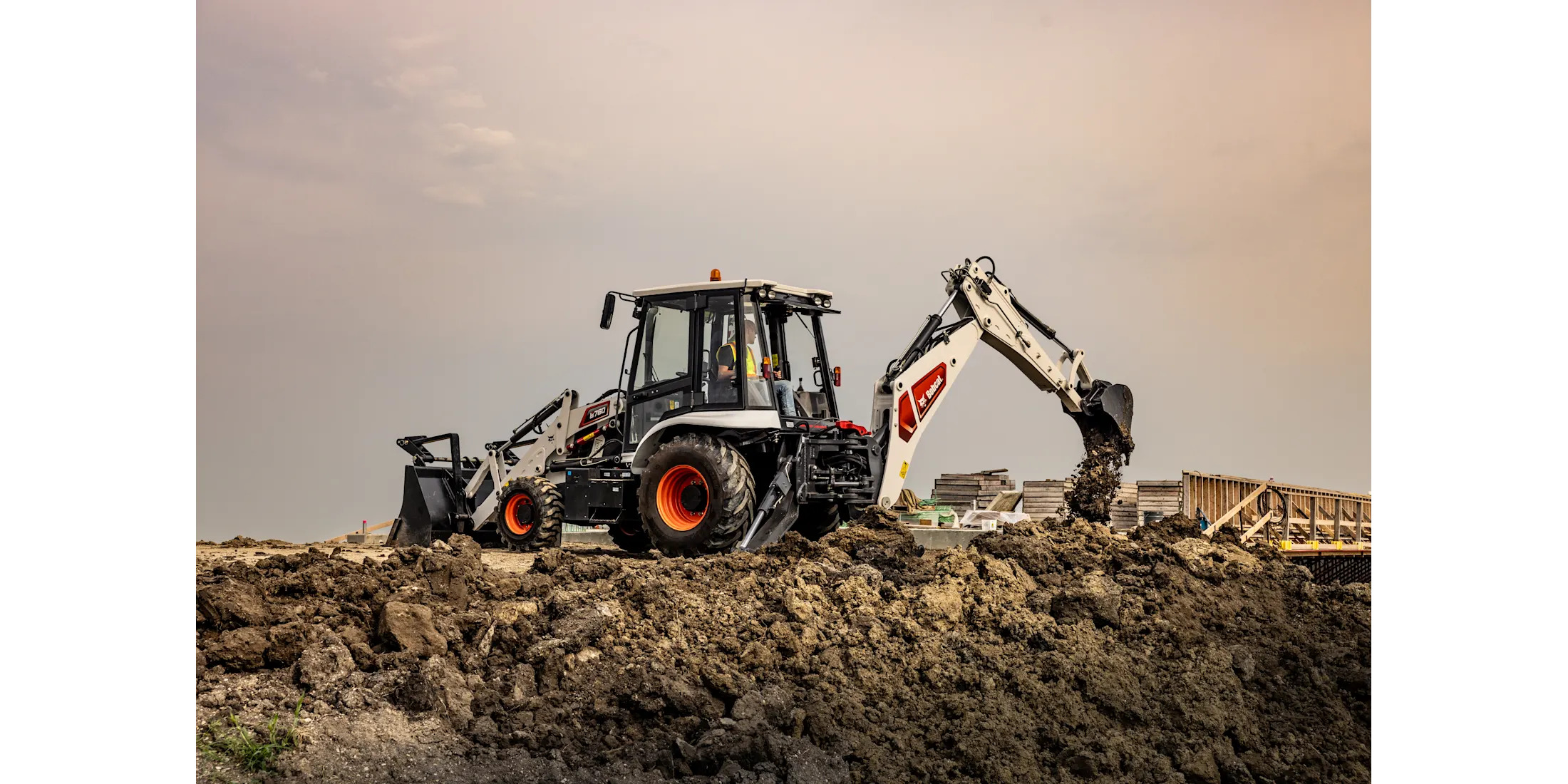

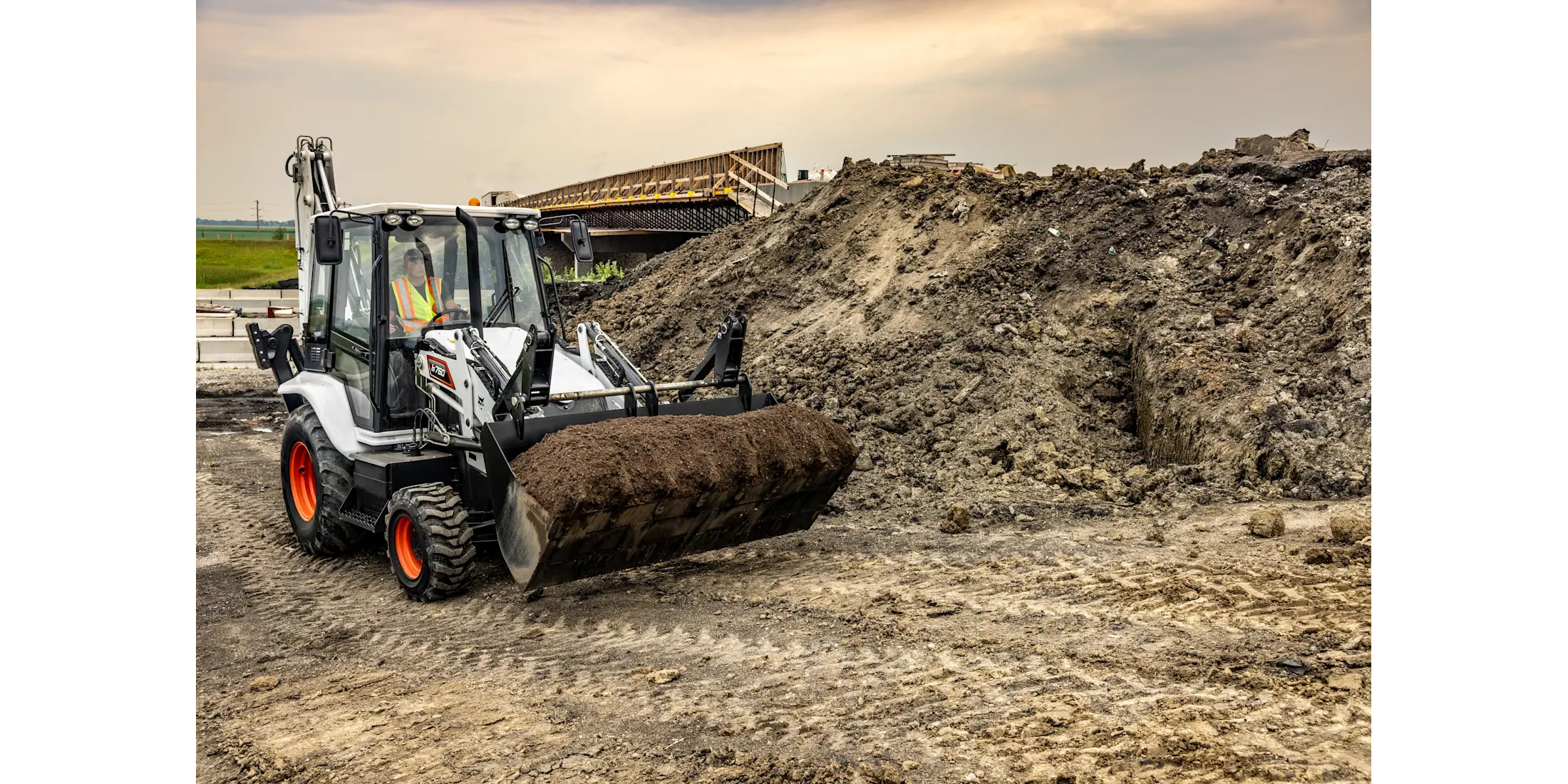

Bobcat B760 Backhoe Loader
Carry and load in front. Dig in back. The Bobcat® B760 backhoe loader can pull double duty on a wide range of tough jobs. Designed with durability, easy operation, simple maintenance and incredible performance in mind. Tackles digging, trenching and attachment work where high-horsepower strength for the job is key, but maneuverability and accessibility are essential. Transport the machine with less trailering thanks to its impressive travel speed
- Standard extendable backhoe arm delivers class-leading dig depth of 18.4 feet
- Nearly 180 degrees of backhoe working range
- 7,985-pound loader lift capacity with 11.3-foot lift height
- 96-horsepower, turbocharged Bobcat engine requires no DPF regeneration
96
Horsepower
7985 lbs
Operating Capacity
19274 lbs
Operating Weight
Bobcat B760 Backhoe Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Horsepower 96 hp
Transmission Type Powershift
Overall Length in Travel Position 298 in
Ground Clearance 13.3 in
Height to Bucket Hinge Pin 136 in
Maximum Dig Depth 221.4 in
Max Dump Height 188.3 in
Reach From Center of Swing Point 265.2 in
Differential Lock Standard
Heater Air Conditioning Optional
Selectable 4 Wheel Drive Standard
Extendable Arm Standard
Ride Control Standard
Performance
Transmission Type Powershift
Arm Digging Force 9667 lbf
Bucket Digging Force 14388 lbf
Maximum Dig Depth 221.4 in
Max Dump Height 188.3 in
Reach From Center of Swing Point 265.2 in
Dimensions
Overall Length in Travel Position 298 in
Ground Clearance 13.3 in
Wheelbase 87.4 in
Height to Bucket Hinge Pin 136 in
