$29,995

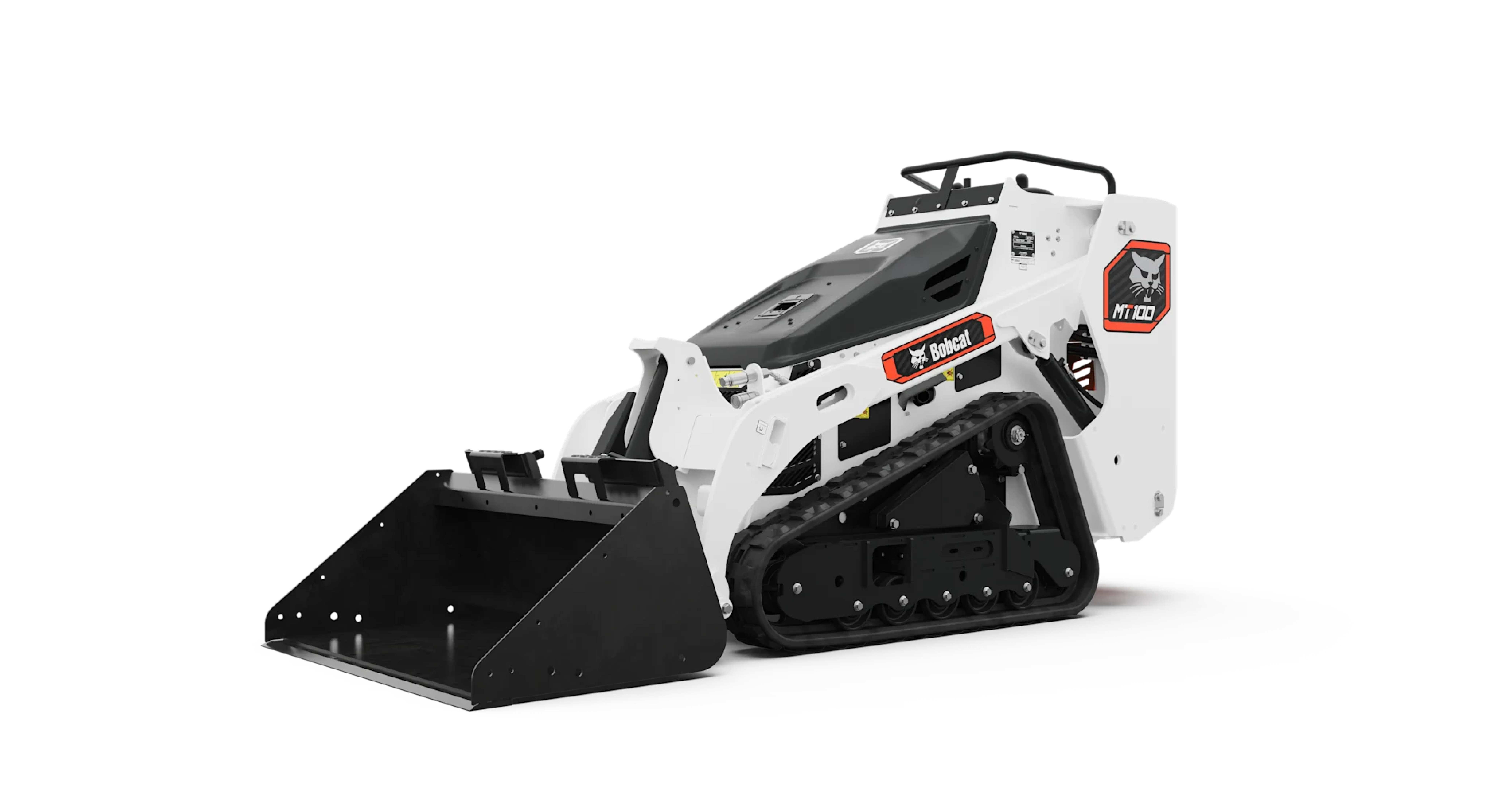

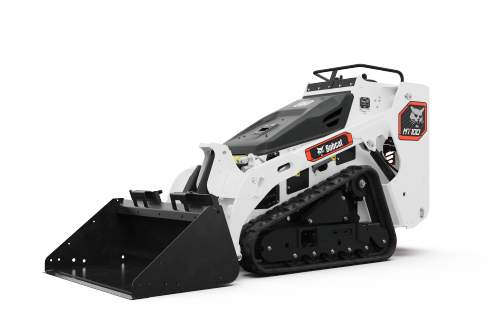

2024 MT100-R MINI TRACK LOADER

Narrow Track

423.1

Hours

B52P46168

Serial #

1379627

Stock #

Showroom Brochure Get Quote Financing Calculator

Bobcat MT100 Mini Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Lift-Arm Support Standard

Auxiliary Hydraulics Standard

Spark Arrestor Muffler Standard

Bob-Tach Attachment System Standard

Reverse Travel Stop Panel Not Applicable

Wide Track Optional

Neutral Start Interlocks Standard

Lift Arm Lockout With Manual Bypass Standard

Tilt Lockout Standard

Built-In Tie Down & Crane/Lift Locations Standard

Ride-on Platform Not Applicable

Horsepower 24.8 hp

Rated Operating Capacity (ISO) 1,000 lb

Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb

Operating Weight 3390 lb

Ground Pressure (Rubber) 5.25 psi

Auxiliary Std Flow 12 gal/min

Width 35.6 in

Height to Bucket Hinge Pin 80.9 in

Fuel Tank 7 gal

Pump Capacity 12 gal/min

System Relief @ Quick Couplers 2,900 psi

Auxiliary Std Flow 12 gal/min

Performance

Rated Operating Capacity (ISO) 1,000 lb

Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb

Tipping Load 2898 lb

Operating Weight 3390 lb

Ground Pressure (Rubber) 5.25 psi

Travel Speed 4.1 mph

Travel Speed - Reverse 2.9 mph

Emissions Tier (EPA) Tier 4

Engine Cooling Liquid

Engine Fuel Diesel

Displacement 55 in³

Horsepower 24.8 hp

Number of Cylinders 3

Dimensions

Length 106.2 in

Width 35.6 in

Height 54.6 in

Height to Bucket Hinge Pin 80.9 in

Length of track on ground 41.4 in

Reach @ Maximum Height 18.6 in
