Plow through the deepest drifts and push large piles of snow. Fingertip controls make it easy to configure the hydraulically operated blade. Standard, high-carbon steel cutting edge. Trip moldboard reduces potential impact damage from obstructions.
Compatible With:
Loaders
Tractors
Utility Work Machines

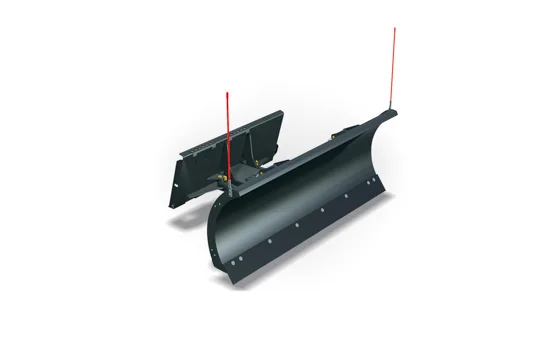

Bobcat Snow Blade – 72″ Attachment Specs
Key Specs
Operating Weight590 lb
Length42 in
Width72 in
Height28 in
Cutting Edge (Steel).375" x 6"
Cylinder Bore2 in
Cylinder Rod1.2 in
Cylinder Stroke9.6 in
Working Width (Fully Angled)63 in
Cylinders2
Optional Rubber Cutting Edge1" x 6"
Trip Springs4
Degree of Angle Right or Left30°
Features
Versatile MoldboardThe moldboard angles as much as 30 degrees right or left up to 30 degrees for protection. Standard snow blades feature a trip moldboard and heavy-duty snow blades feature a trip edge.
Depth ShoesThe long-lasting depth shoes are adjustable to match your conditions.
High-Carbon Steel Cutting EdgeA high-carbon steel cutting edge is standard on the snow blade. Rubber and polyurethane edges also are available.
