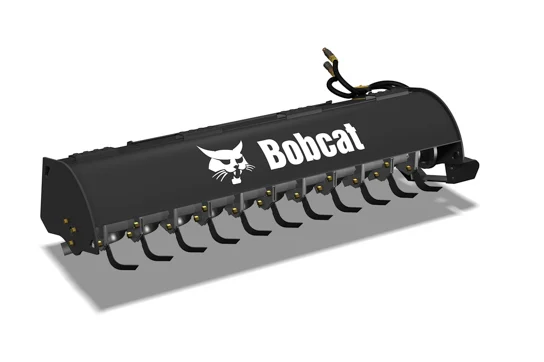

Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed. Tear through clumps and hardened materials with the replaceable, double-edge tines. Bi-directional operation for top-cutting and under-cutting in either direction. Offset mounting allows for tilling next to sidewalks and buildings.
Bobcat 3PT TILLER 48 Attachment Specs
Operating Weight591 lb
Drive540 PTO with Slip Clutch protection
Tine Rotation211 RPM @540 PTO
Cutting Width46.5 in
Blade Box - Number of Blades0
Blades per flange0
Mower Tractor PTOSpeed 540 RPM HP 12-20
Tractor PTO HP20 hp
Adjustable Skid ShoesThe attachments adjustable skid shoes deliver depth control for more precise tilling operation.
Bi-Directional RotationWith bi-directional rotation, operators have the option of top-cutting and under-cutting when tilling in either direction, maximizing attachment versatility and increasing operating capabilities.
Replaceable TinesHardened for maximum soil penetration, the double-edge tines break through clumps and tear through materials to deliver loosened soil for ground preparation.
Offset MountingOffset mounting accommodates tilling next to sidewalks, curbs, and buildings, increasing the jobsite capabilities of the tiller attachment.
Direct-Drive, Hydraulic MotorThe direct-drive motor delivers necessary operating power while reducing overall maintenance costs, extending the life of the attachment and eliminating the need for high wear items such as gear boxes, chains, sprockets and sheer pins.
Bob-Tach® Mounting SystemThe Bob-Tach® mounting system turns any Bobcat® loader into a multi-job machine with a tight-fit attachment hook-up. Fast and easy attachment changes mean spending less time on maintenance and more time on the job.
Compatible Models for the Bobcat 3PT TILLER 48 Attachment
