Buy a Used 2023 MT100-R MINI TRACK LOADER - Bobcat of the Rockies

PENDING

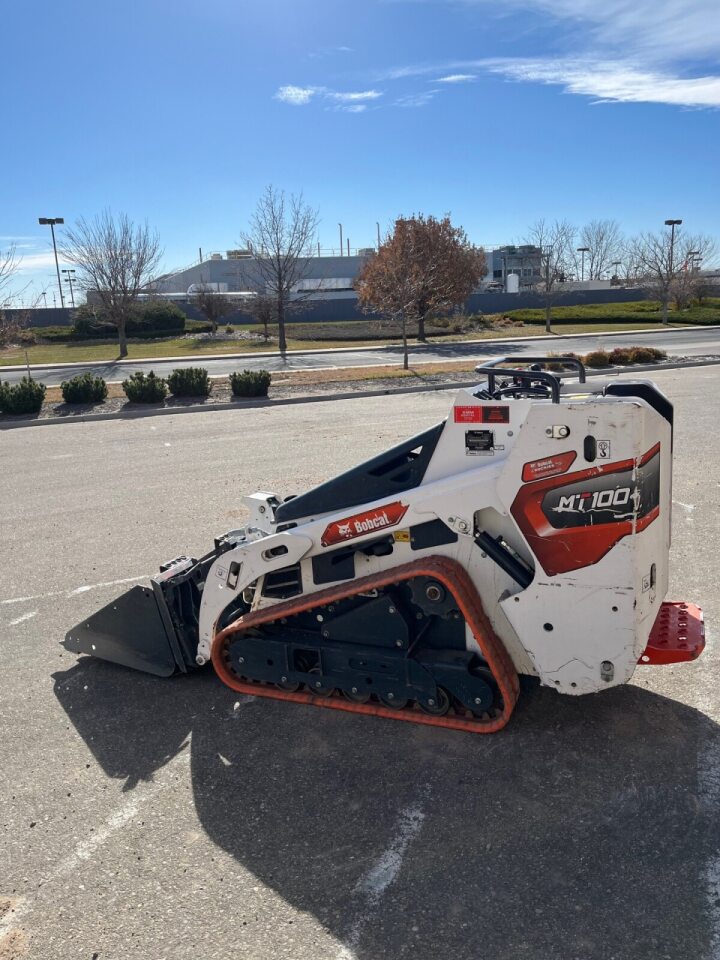

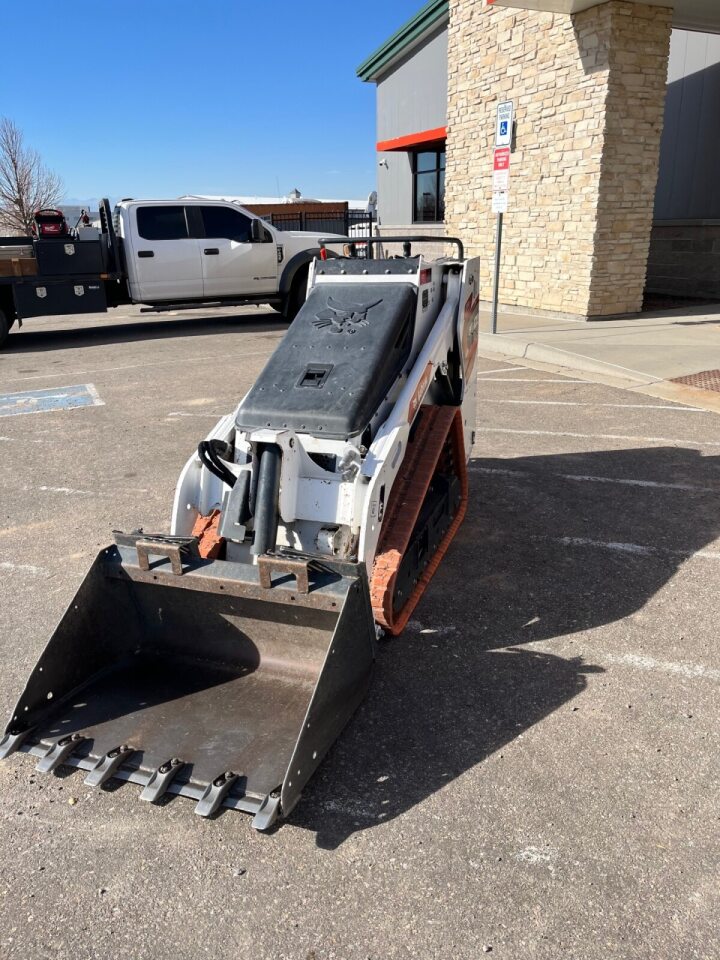

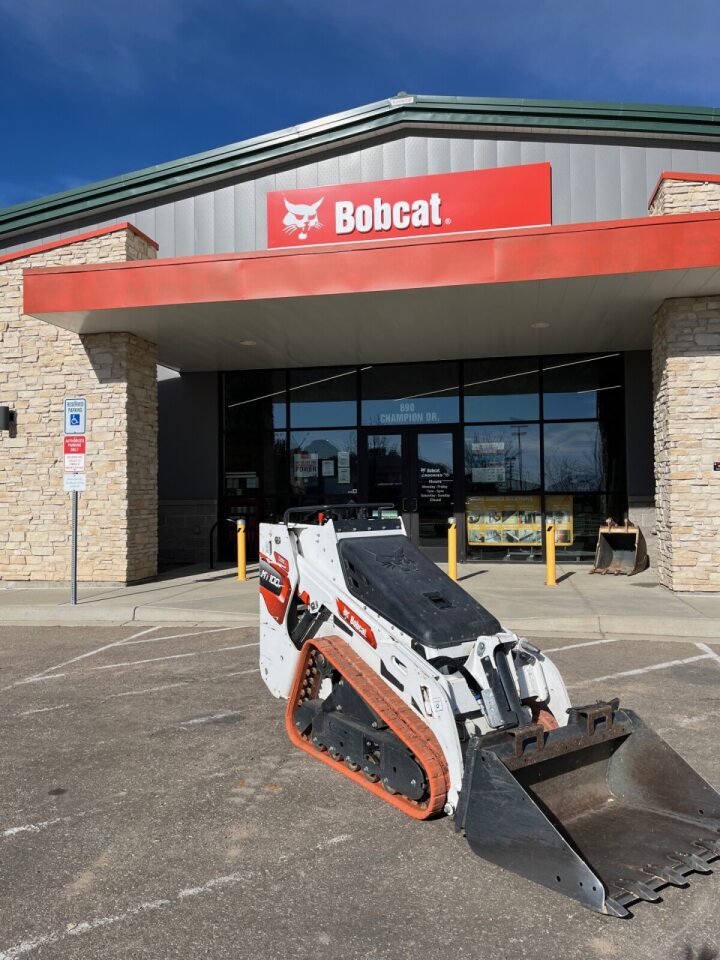

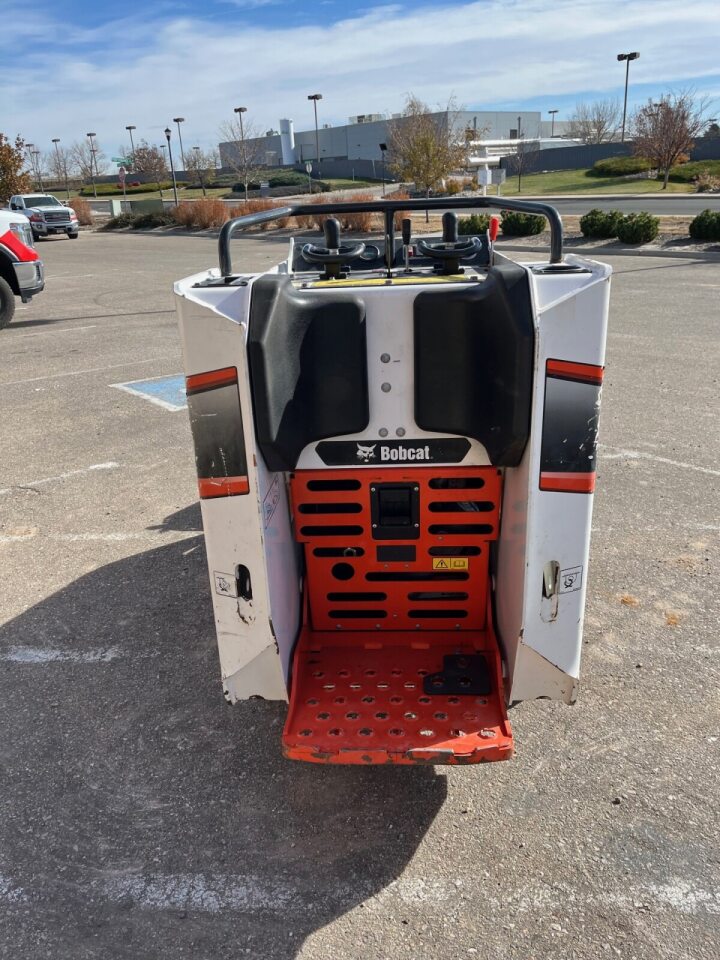

2023 MT100-R MINI TRACK LOADER

Bobtach Interface, Narrow Track

532

Hours

B52P36395

Serial #

1339908

Stock #

Showroom Brochure Get Quote Financing Calculator

** Price may vary. Contact Bobcat of the Rockies - Cheyenne for more information **

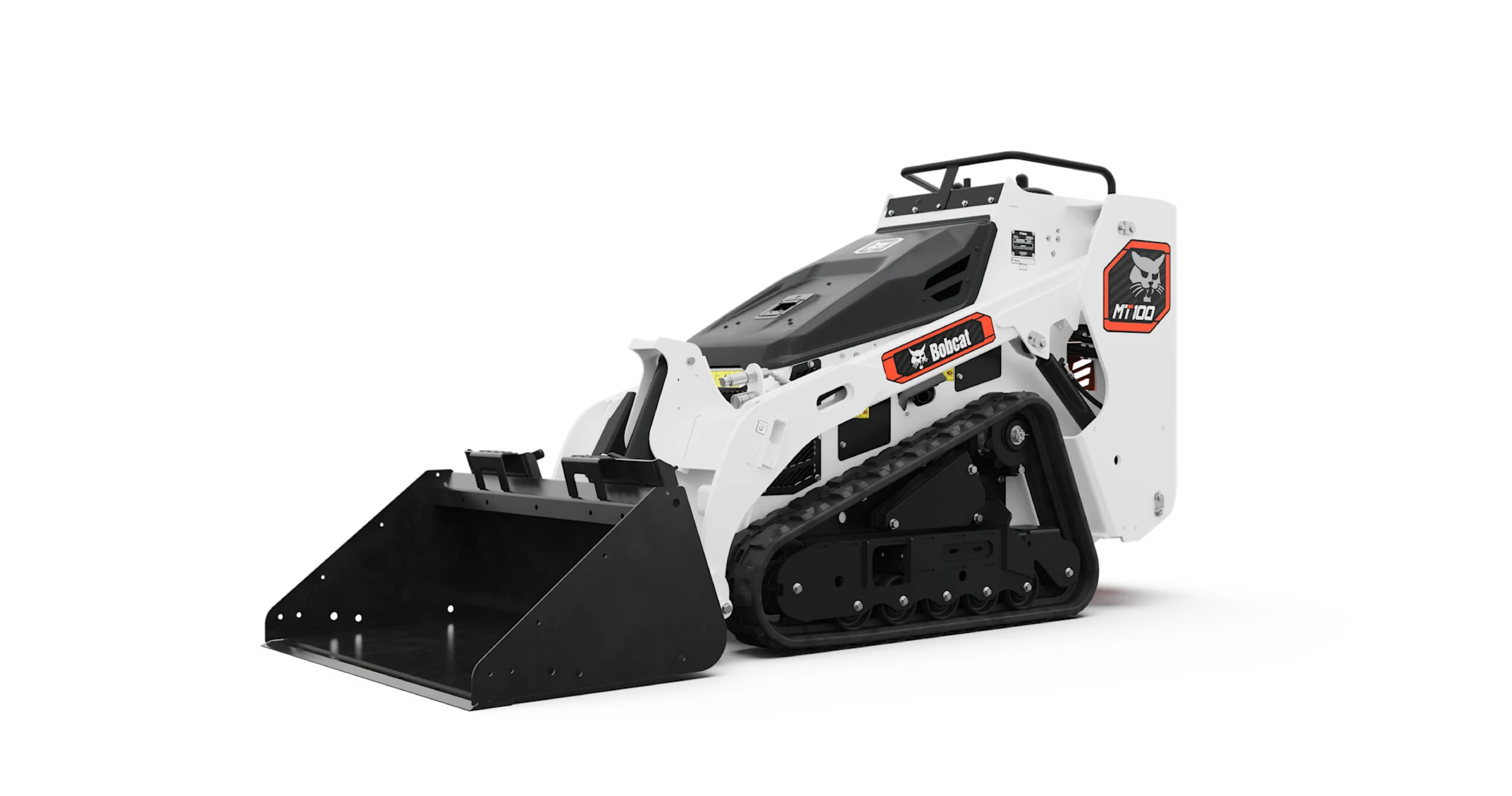

Bobcat MT100 Mini Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Reverse Travel Stop Panel Not Applicable
Wide Track Optional
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Locations Standard
Ride-on Platform Not Applicable
Horsepower 24.8 hp
Rated Operating Capacity (ISO) 1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb
Operating Weight 3390 lb
Ground Pressure (Rubber) 5.25 psi
Auxiliary Std Flow 12 gal/min
Width 35.6 in
Height to Bucket Hinge Pin 80.9 in
Fuel Tank 7 gal
Pump Capacity 12 gal/min
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow 12 gal/min

Performance

Rated Operating Capacity (ISO) 1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb
Tipping Load 2898 lb
Operating Weight 3390 lb
Ground Pressure (Rubber) 5.25 psi
Travel Speed 4.1 mph
Travel Speed - Reverse 2.9 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 55 in³
Horsepower 24.8 hp
Number of Cylinders 3

Dimensions

Length 106.2 in
Width 35.6 in
Height 54.6 in
Height to Bucket Hinge Pin 80.9 in
Length of track on ground 41.4 in
Reach @ Maximum Height 18.6 in
