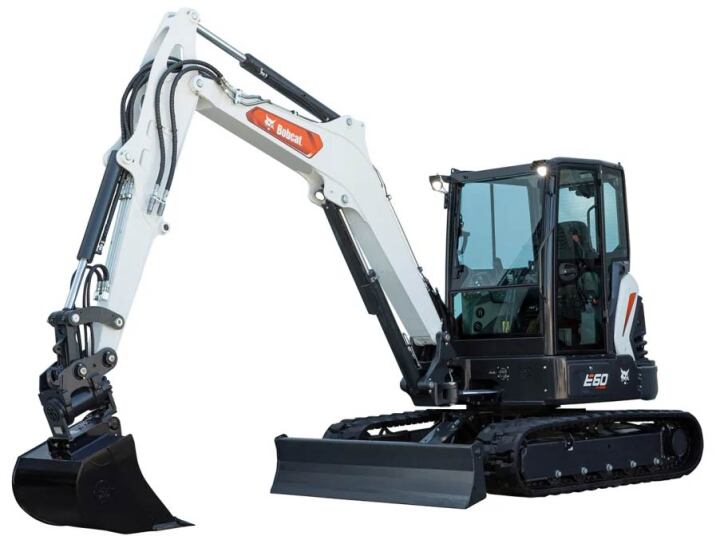

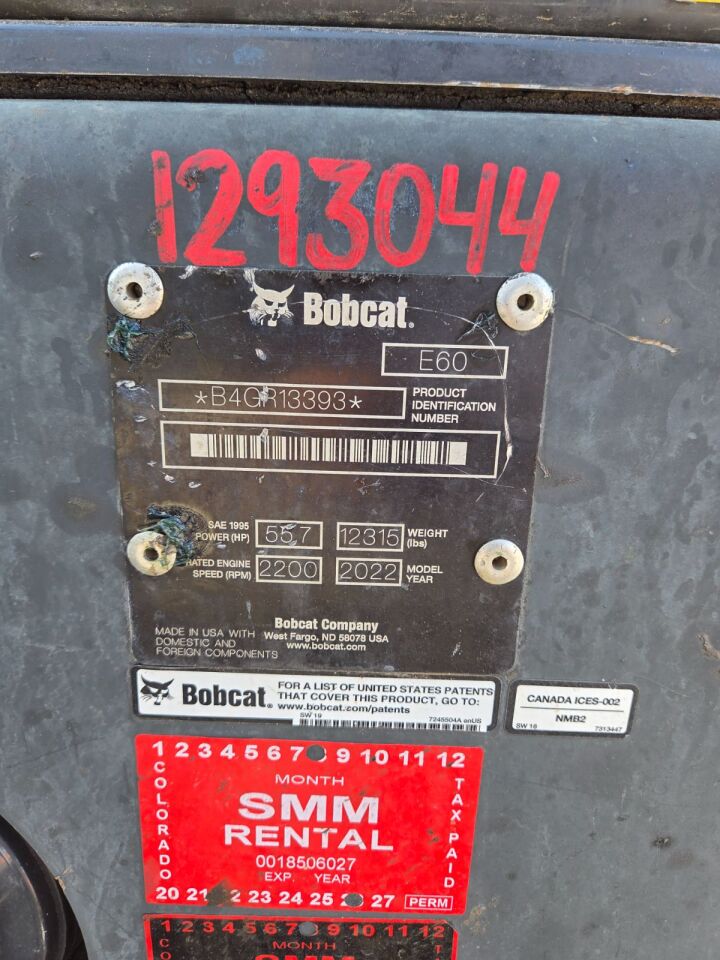

Bobcat E60 Compact Excavator Specs
Key Specifications
Air Conditioning Optional
Cab Enclosure Optional
Cab Heater Not Applicable
Heater Air Conditioning Optional
Radio Optional
Tail Swing Type Conventional
Engine Shutdown Standard
Auxiliary Hydraulics Standard
Secondary Auxiliary Hydraulics Optional
Quick Tach System Standard
Rubber Track Standard
Selectable Auxiliary Hydraulic Flow Standard
Angle Blade Optional
Horsepower 55 hp
Bucket Digging Force 10,261 lbf
Maximum Reach at Ground Level 20.5 ft
Width 77.2 in
Tail Swing Type Conventional
Fuel Tank 19 gal
Auxiliary Std Flow 20 gal/min
Auxiliary Pressure 3,045 psi
Performance
Weight Class 6 t
Travel Speed - High 2.8 mph
Travel Speed - Low 1.8 mph
Arm Digging Force 6,446 lbf
Bucket Digging Force 10,261 lbf
Rated Lift Capacity 6411 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 50°
Maximum Dig Depth 13.1 ft
Max Dump Height 14.3 ft
Maximum Reach at Ground Level 20.5 ft
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,200 rpm
Horsepower 55 hp
Turbocharged Engine yes
Optional Turbocharged Engine N/A
Dimensions
Length 218.3 in
Overall Length in Travel Position 218.3 in
Width 77.2 in
Height 100.1 in

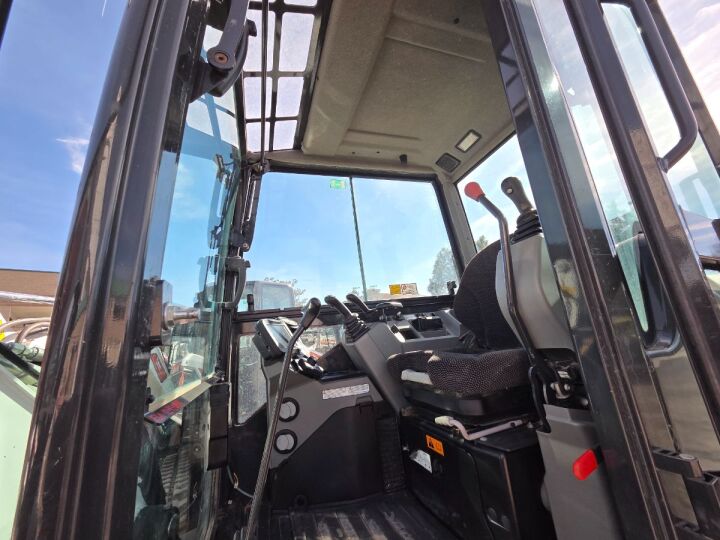

Height with Operator Cab 100.1 in

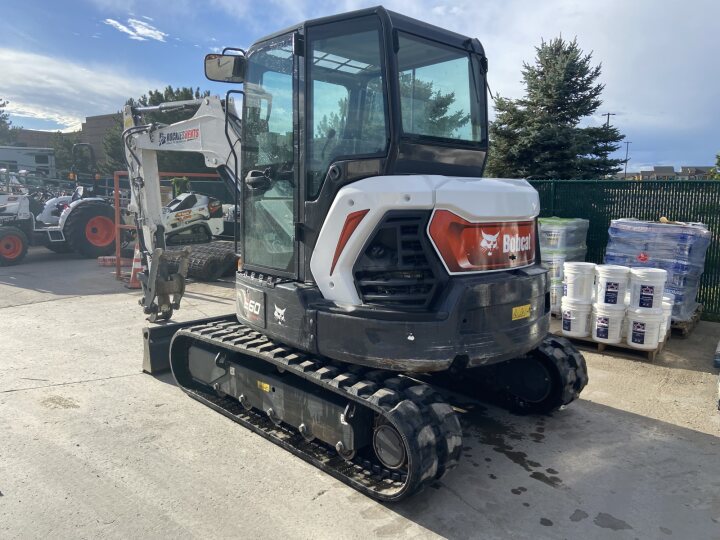

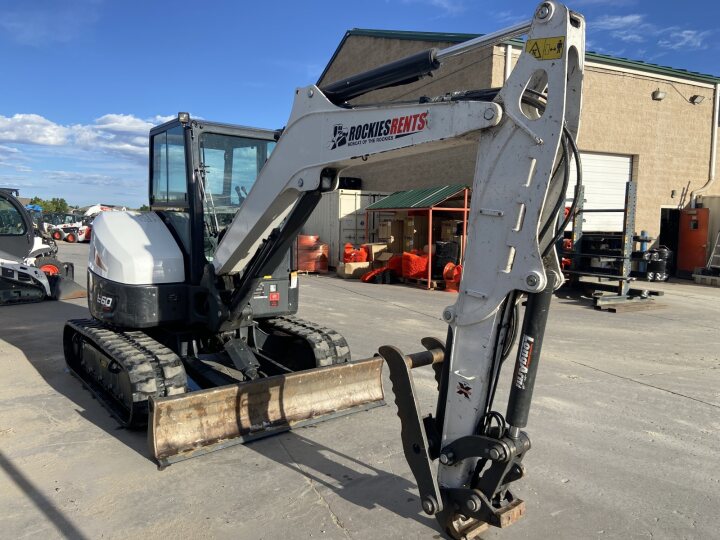

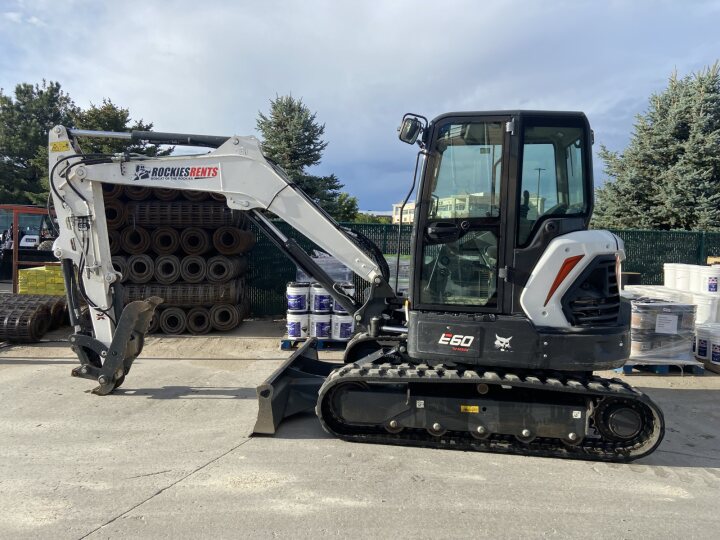

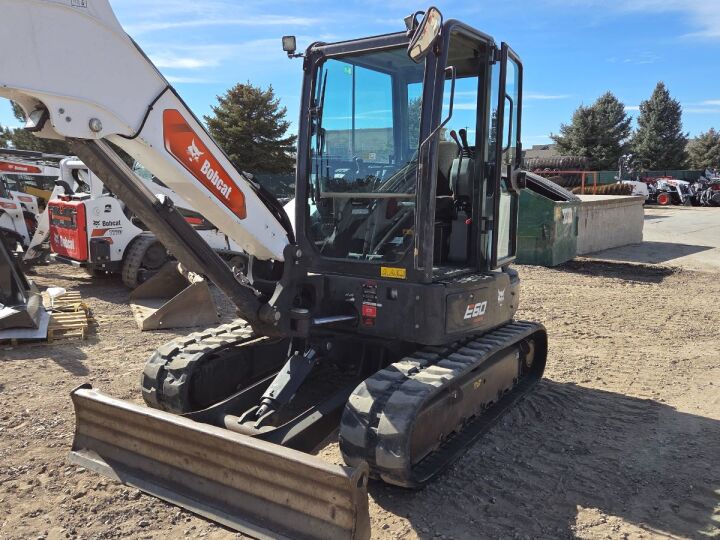

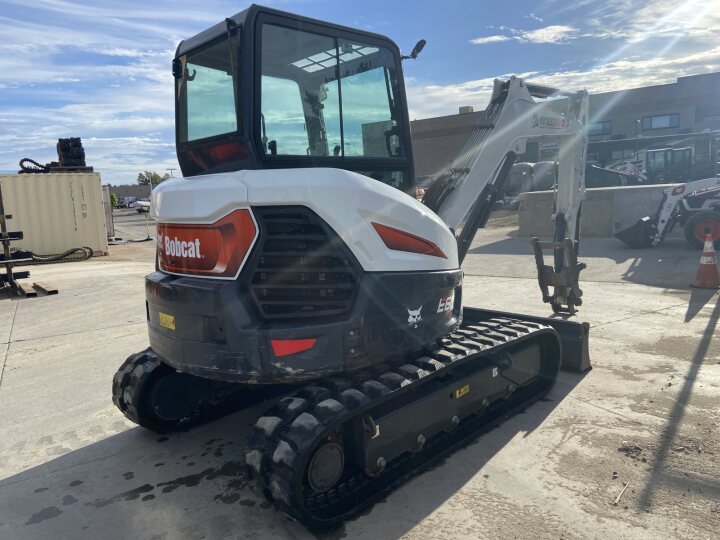

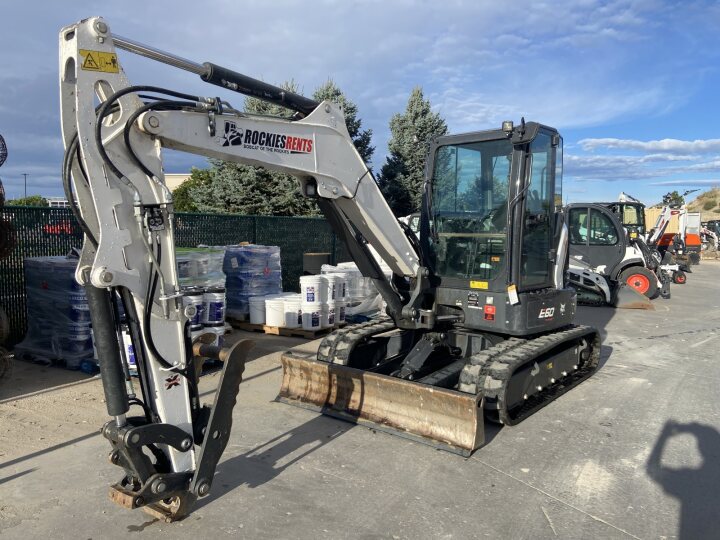

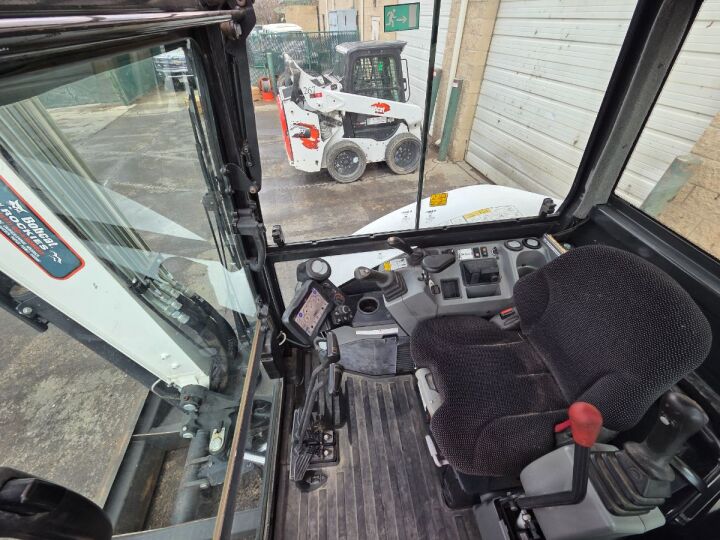

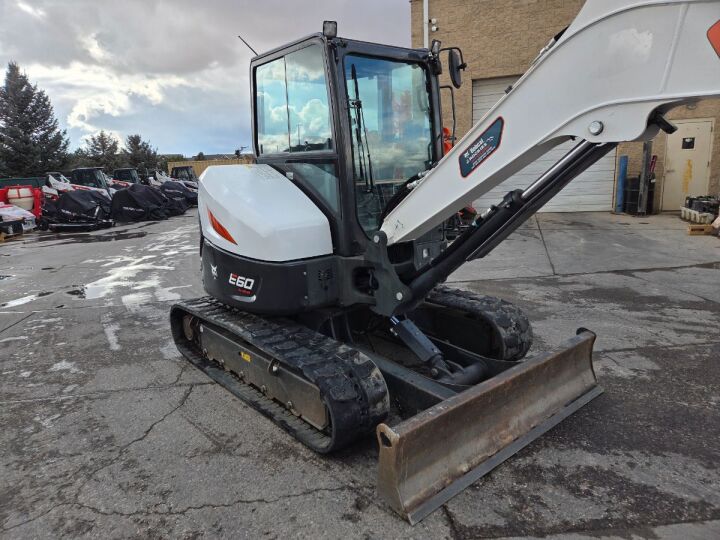

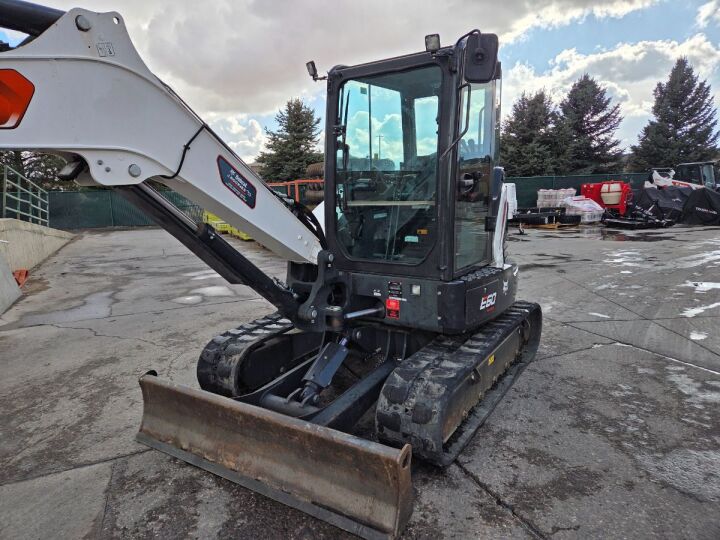

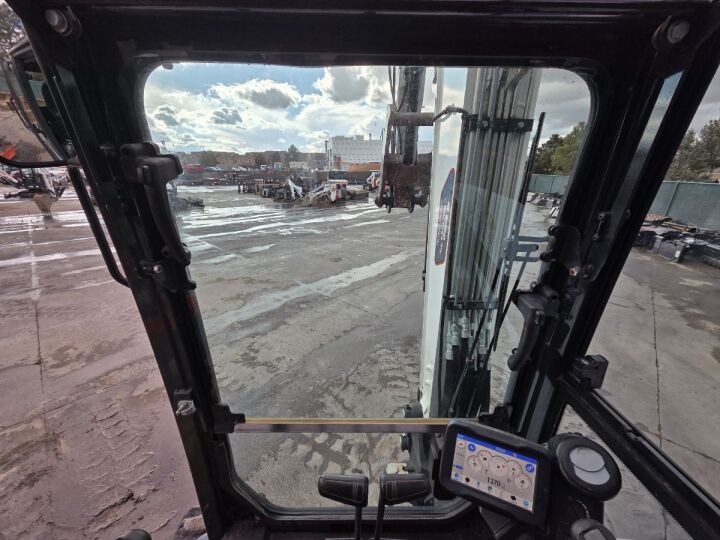

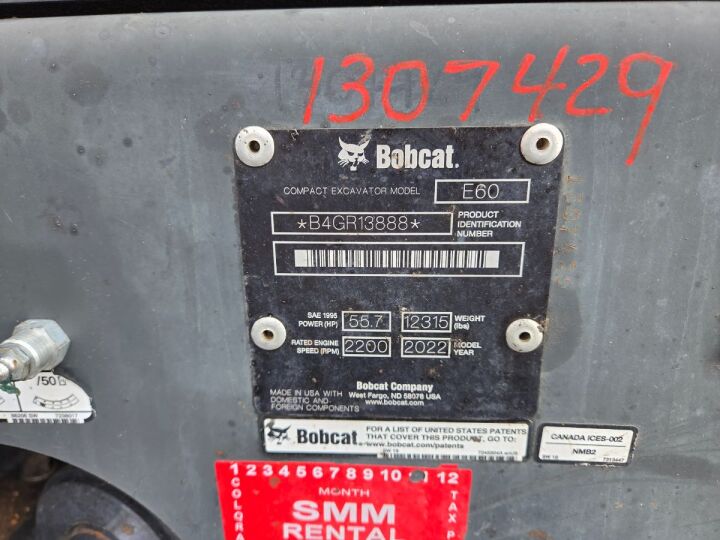

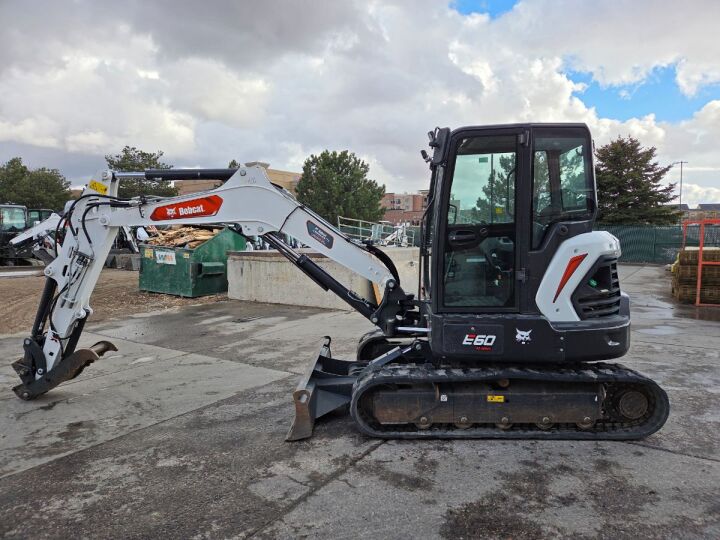

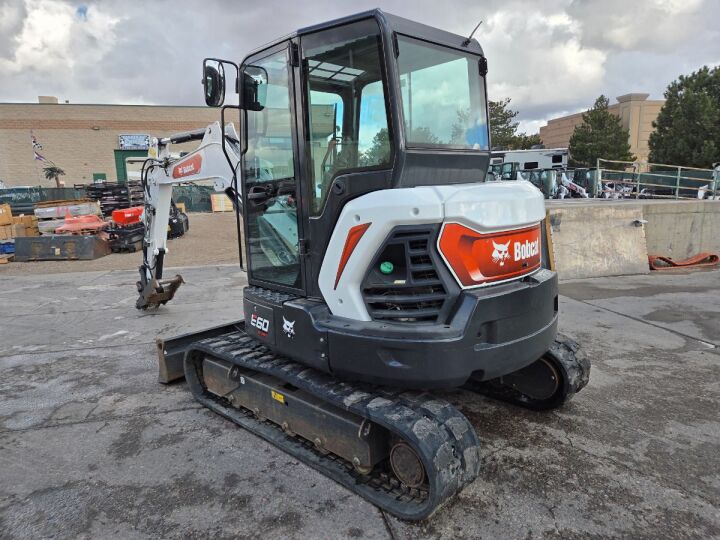

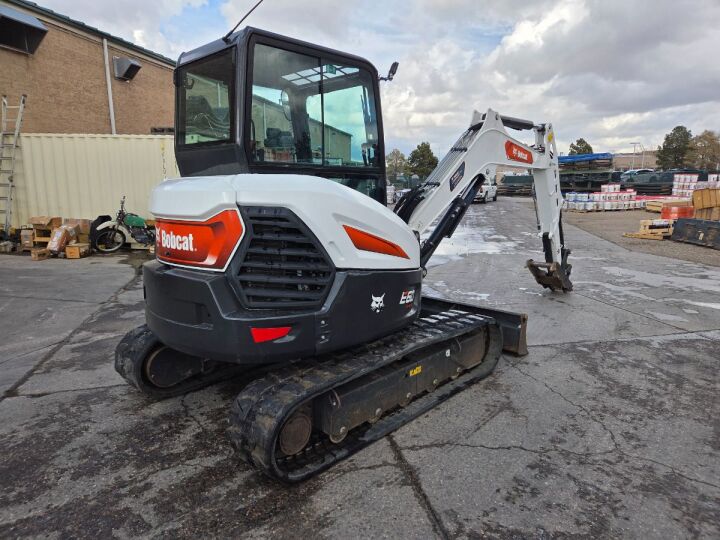

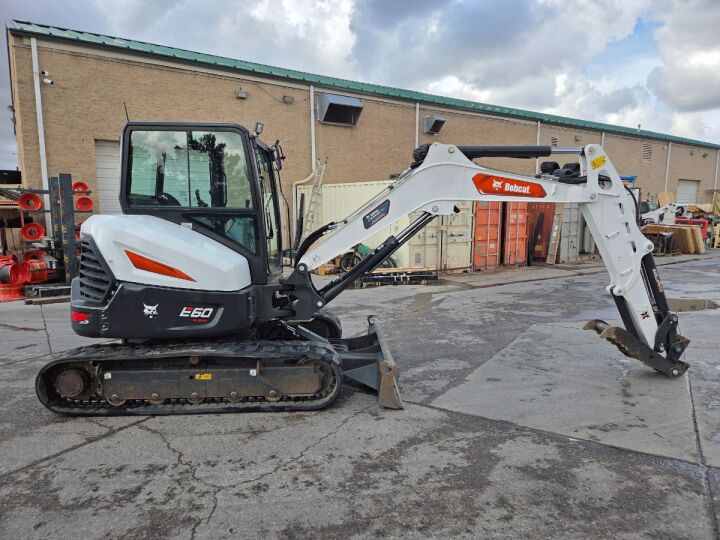

2022 E60-R BOBCAT COMPACT EXCAVATOR
