$18,500

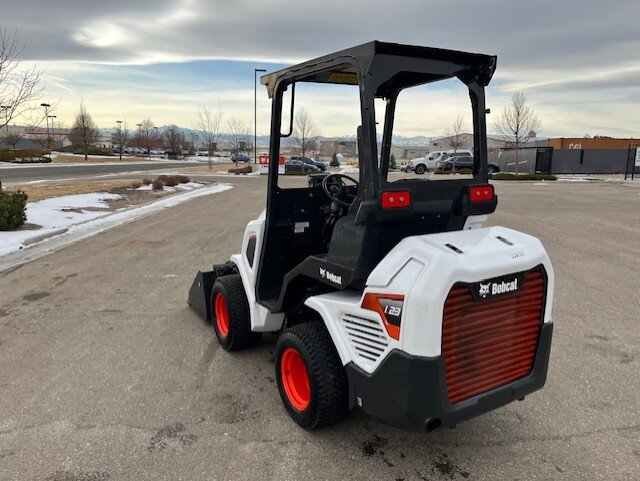

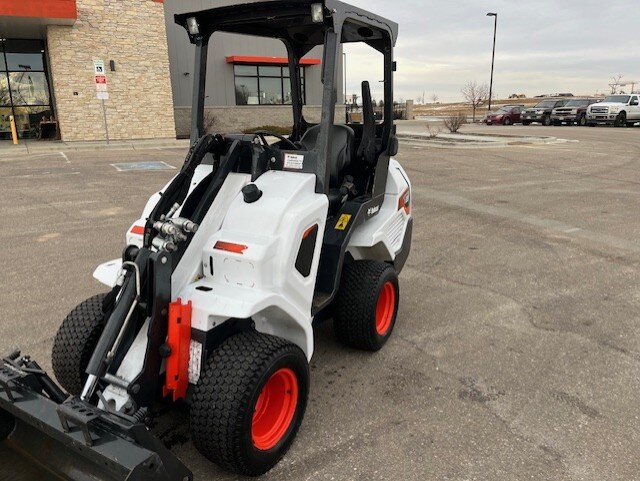

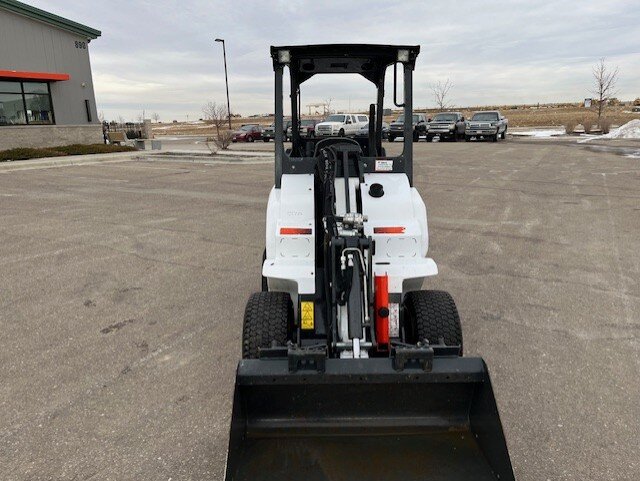

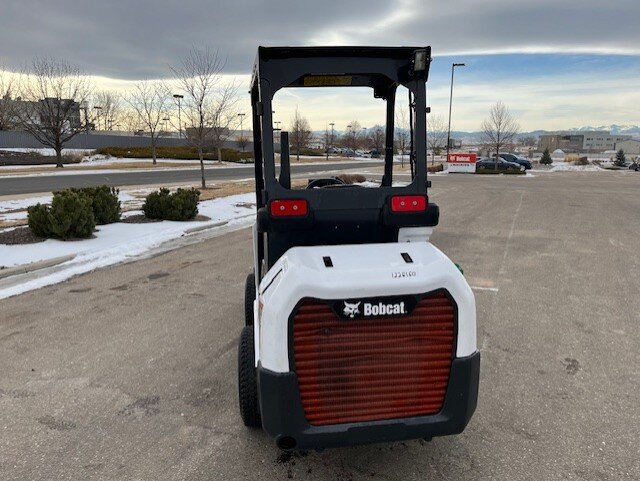

2020 L23-R BOBCAT SMALL ARTICULATED LOADER

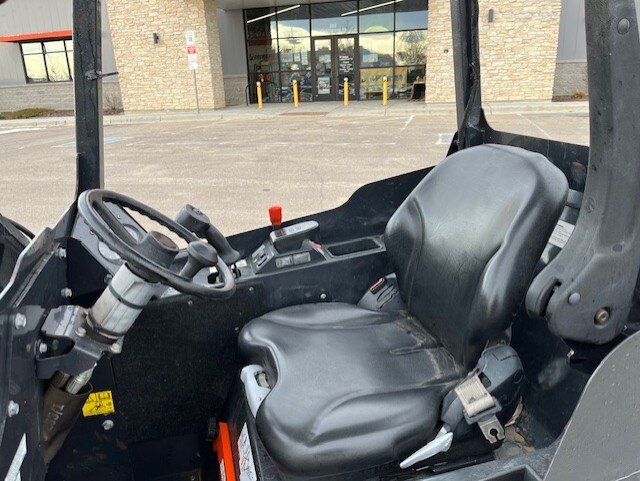

Power Bobtach, Suspension Seat

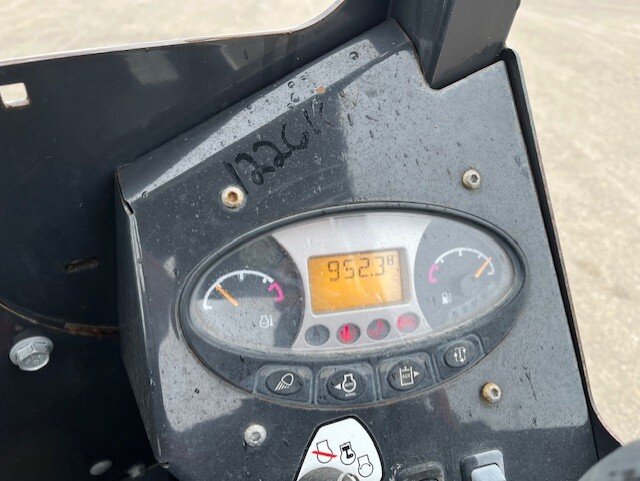

948
Hours
B4LC11182
Serial #
1226160
Stock #

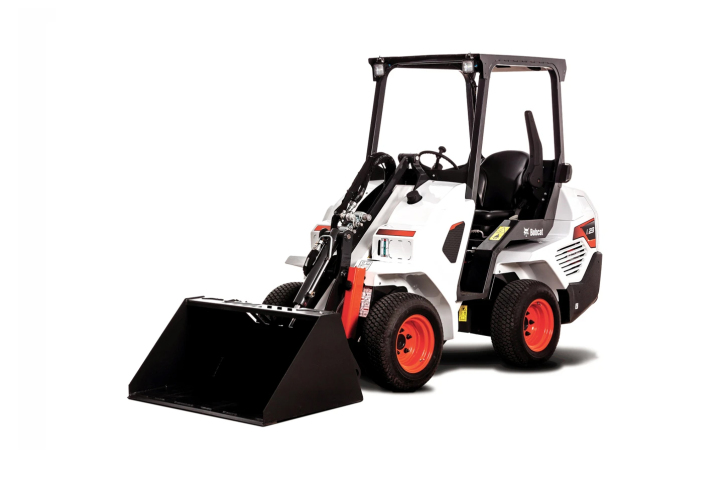

Bobcat L23 Small Articulated Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Air Conditioning Not Applicable
Adjustable Seat Standard
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Enclosure Optional
Cab Heater Optional
Rear Window Optional
Lift-Arm Support Standard
Two Speed Travel Not Applicable
Deluxe Instrumentation Not Applicable
Hydraulic Bucket Positioning Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Horn Standard
Front and Rear Work Lights Standard
Rotating Flashing Beacon Optional
Turn Signals Optional
Tires-Ply Rating 10
Heavy-Duty Float Tires Optional
Cup Holder Standard
Grab Handles N/A
Horsepower 24.8 hp
Auxiliary Std Flow 12.1 gal/min
Width (over tires) 43.2 in
Fuel Tank 9.6 gal
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow 12.1 gal/min
Drive Type Hydrostatic pump driving 4 independent wheel motors
Performance
ROC with Counterweight Option Straight 1815 lb
ROC with Counterweight Option Art. 1471 lb
Tipping Load Straight 2789 lb
Tipping Load Art. 2317 lb
Travel Speed 8.2 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 24.8 hp
Turbocharged Engine no
Dimensions
Length 122.4 in
Length without Attachment 93.2 in
Length with Standard Bucket 122.4 in
Width (over tires) 43.2 in
Width (with bucket) 44 in
Height with Operator Cab 78.1 in
Height to Bucket Hinge Pin Ext 85.4 in
Height to Bucket Hinge Pin Ret 85.4 in
Max Reach 16.8 in
Turning Radius Inside 77.2 in
Turning Radius Outside 100.9 in
Wheelbase 47.2 in
Articulation Angle 43°
Dump Angle @ Maximum Height 40°
Ground Clearance 5.5 in
Rollback Angle 32°
Tire Size 23X8.5-12
Wheel Tread 34.4 in
2020 L23-R BOBCAT SMALL ARTICULATED LOADER
