PENDING

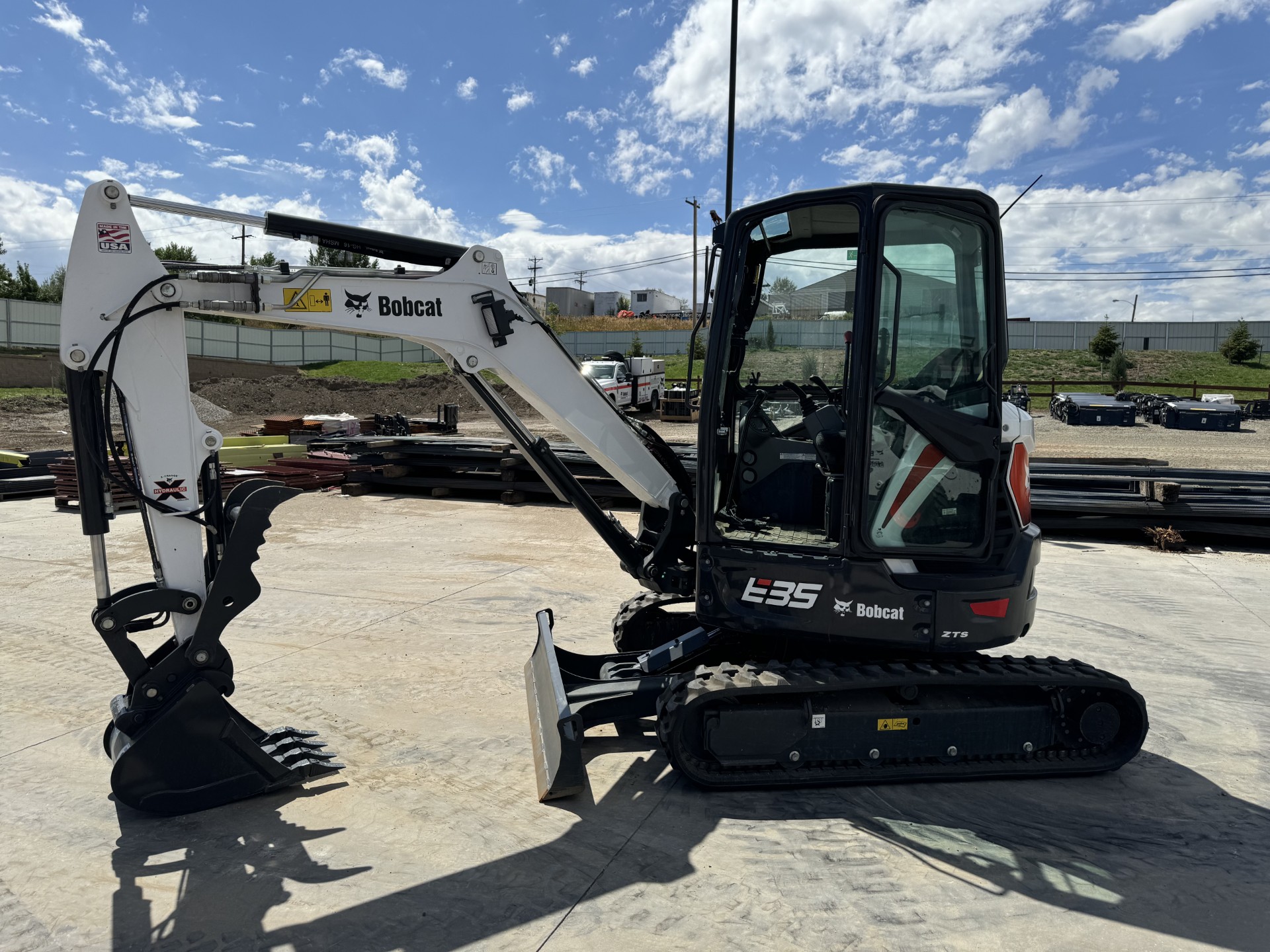

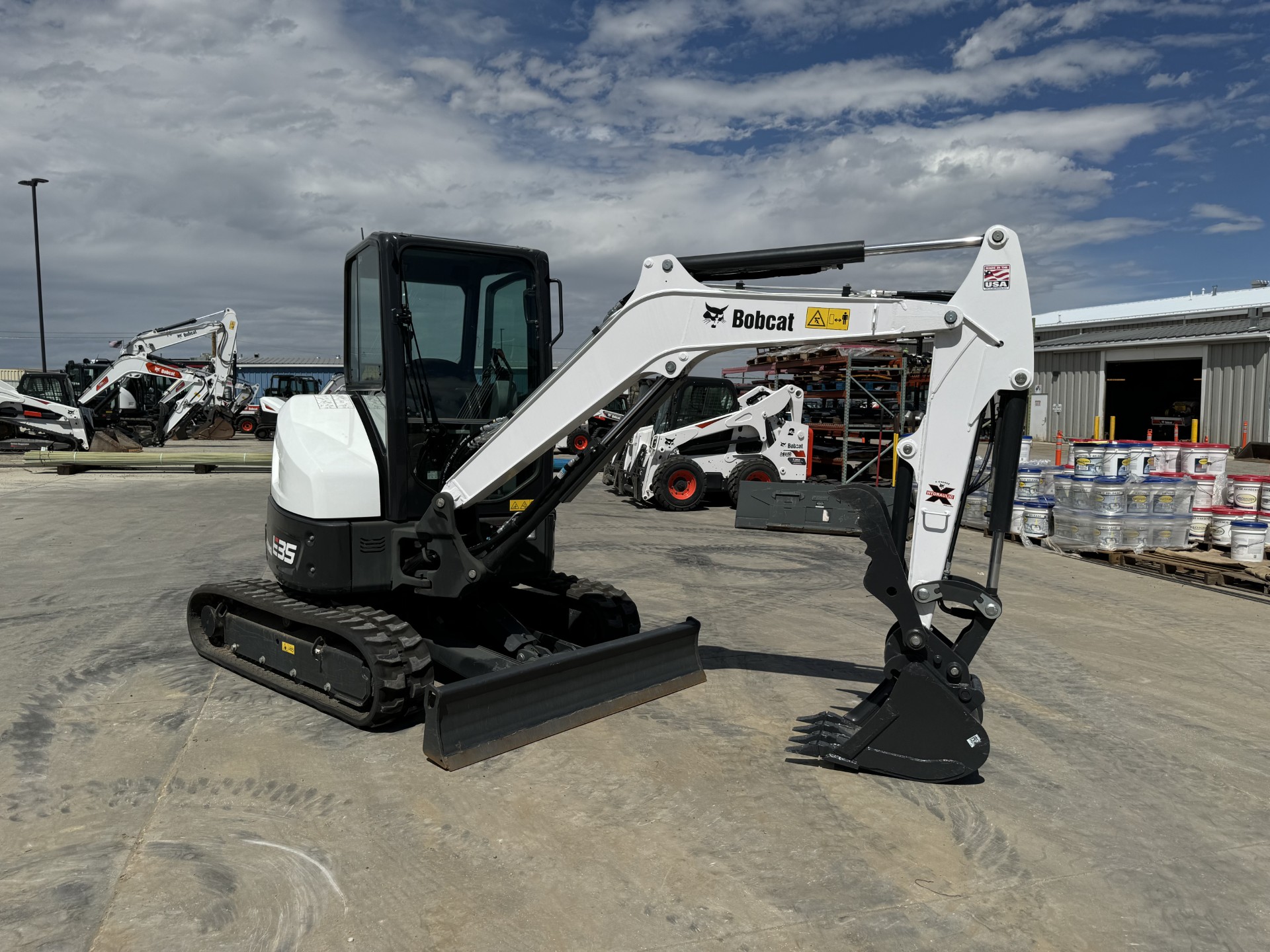

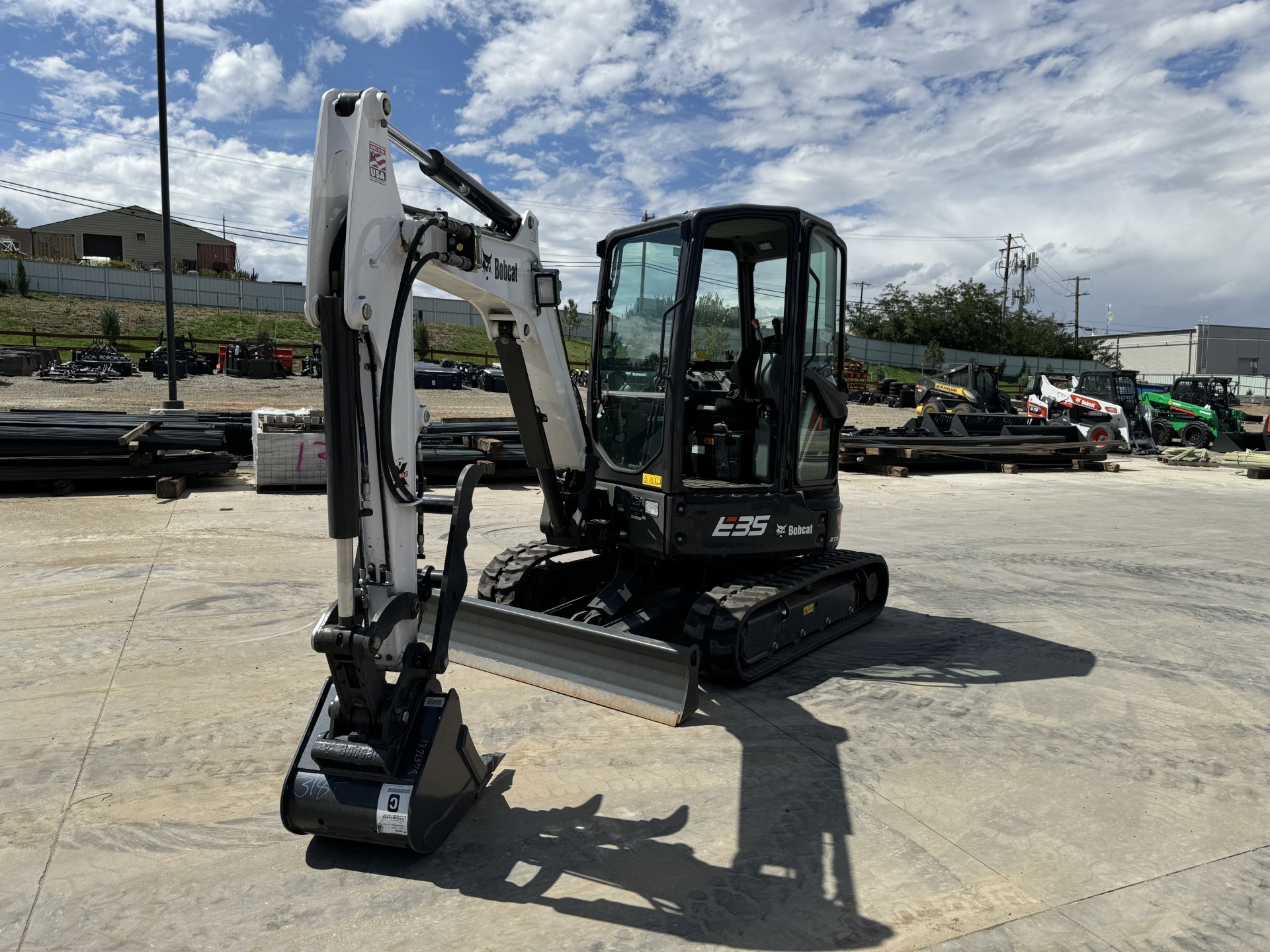

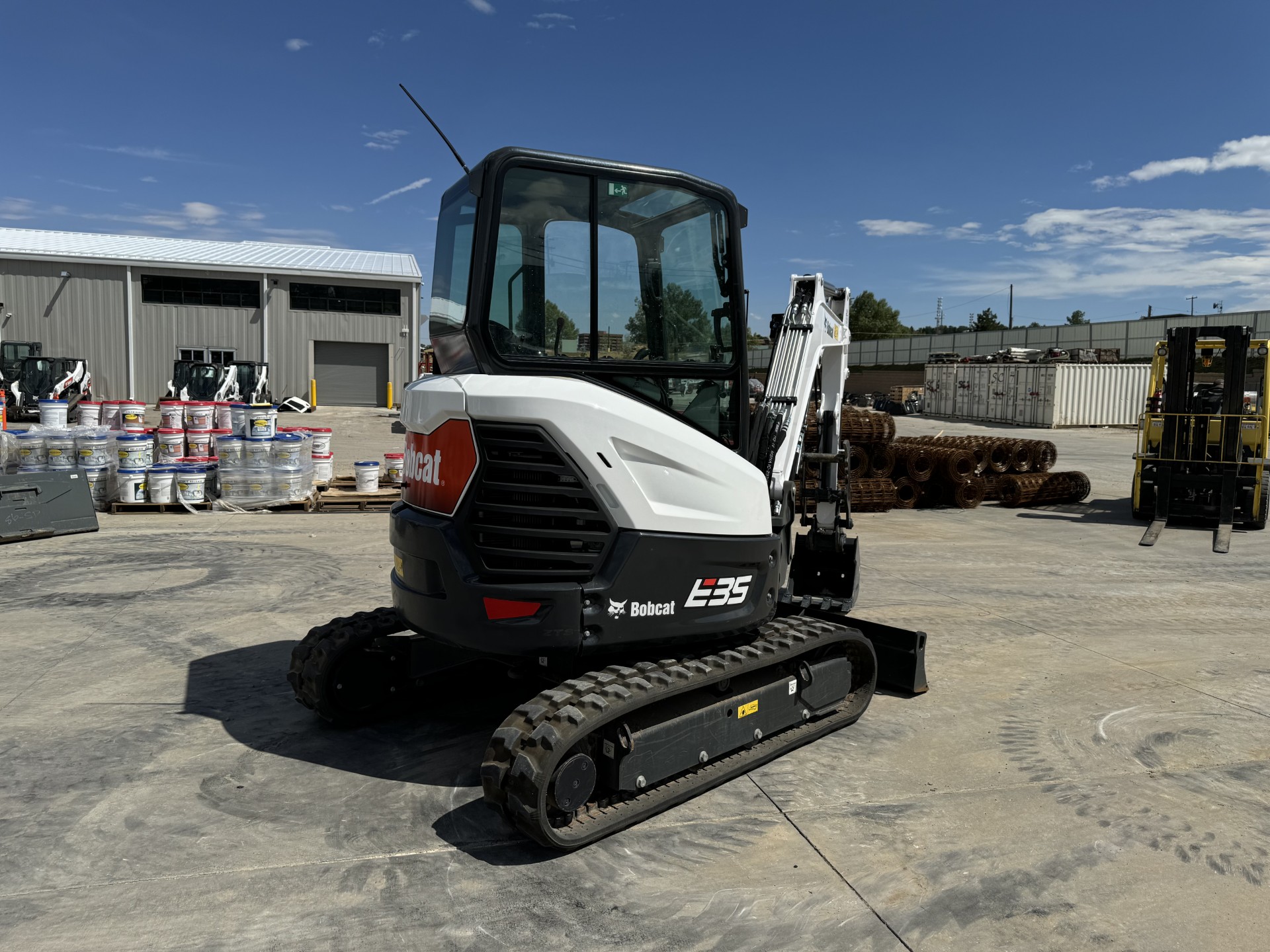

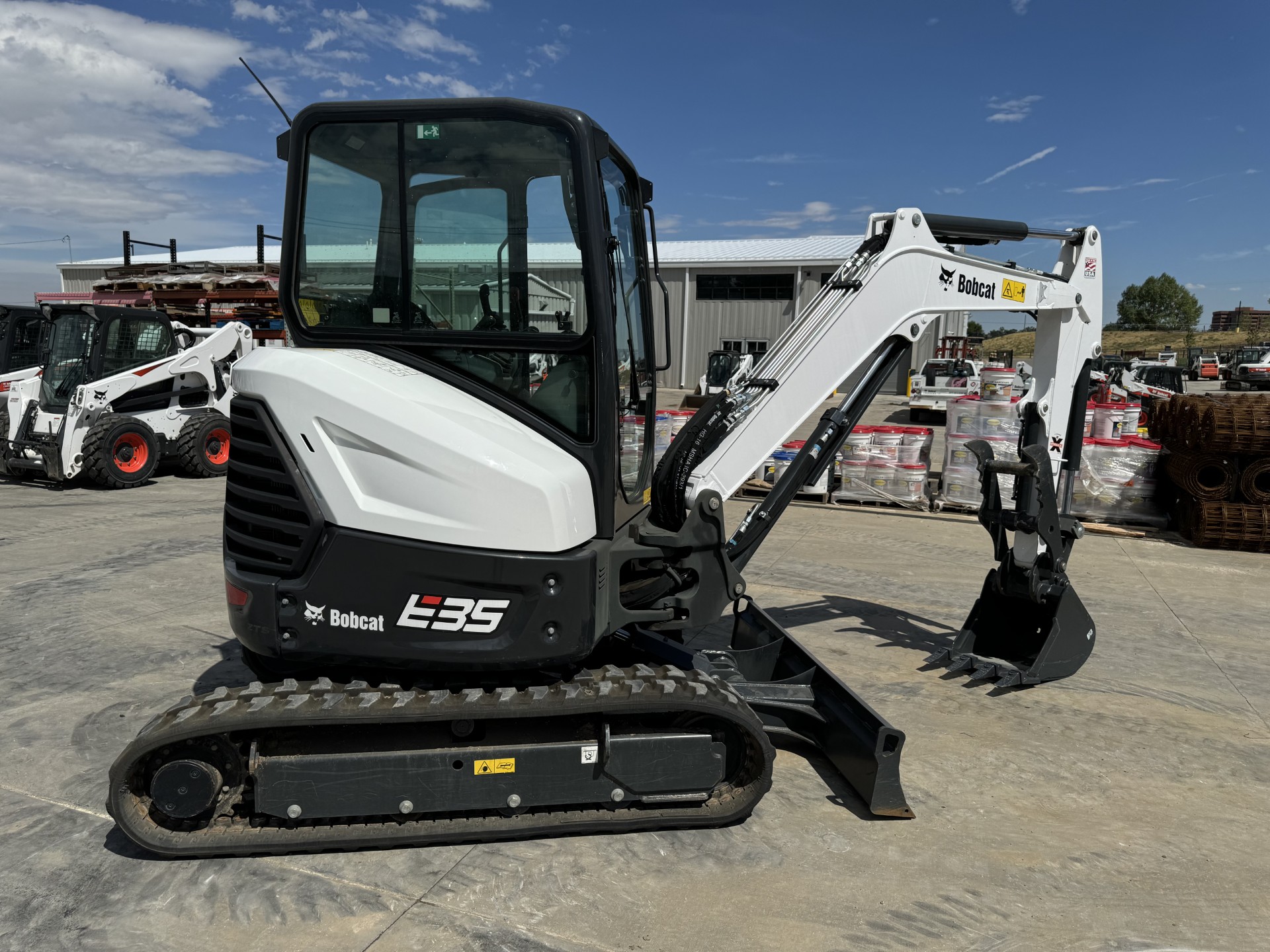

2020 E35-U BOBCAT COMPACT EXCAVATOR

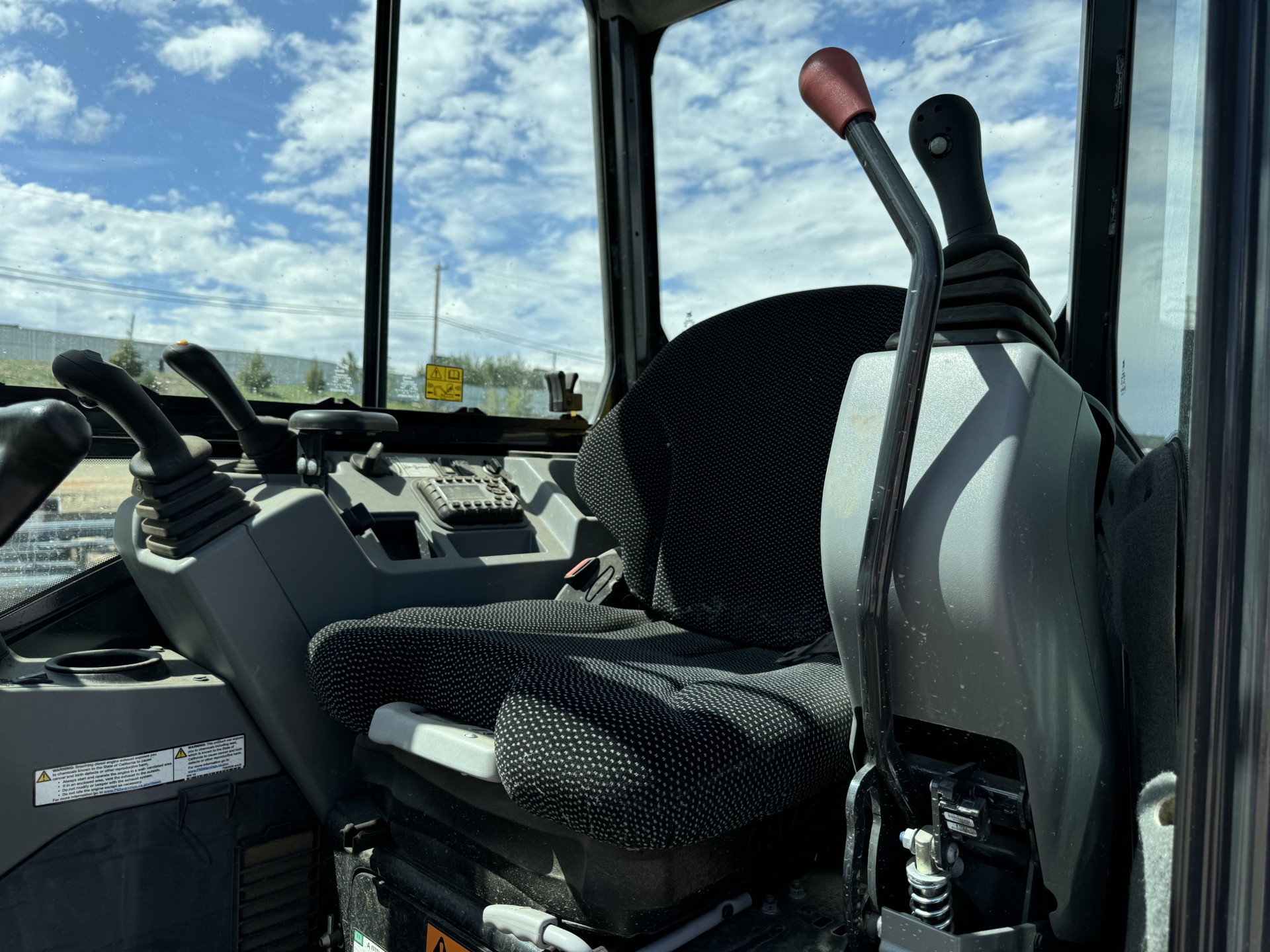

2020 Bobcat E35 Compact Excavator with C62 Comfort package, including Enclosed Cab with Auto HVAC, 7__ Touch Display with Radio & Bluetooth, Heated High Back Cloth Suspension Seat with Headrest, Travel Motion Alarm, and short arm clamp pow
94
Hours

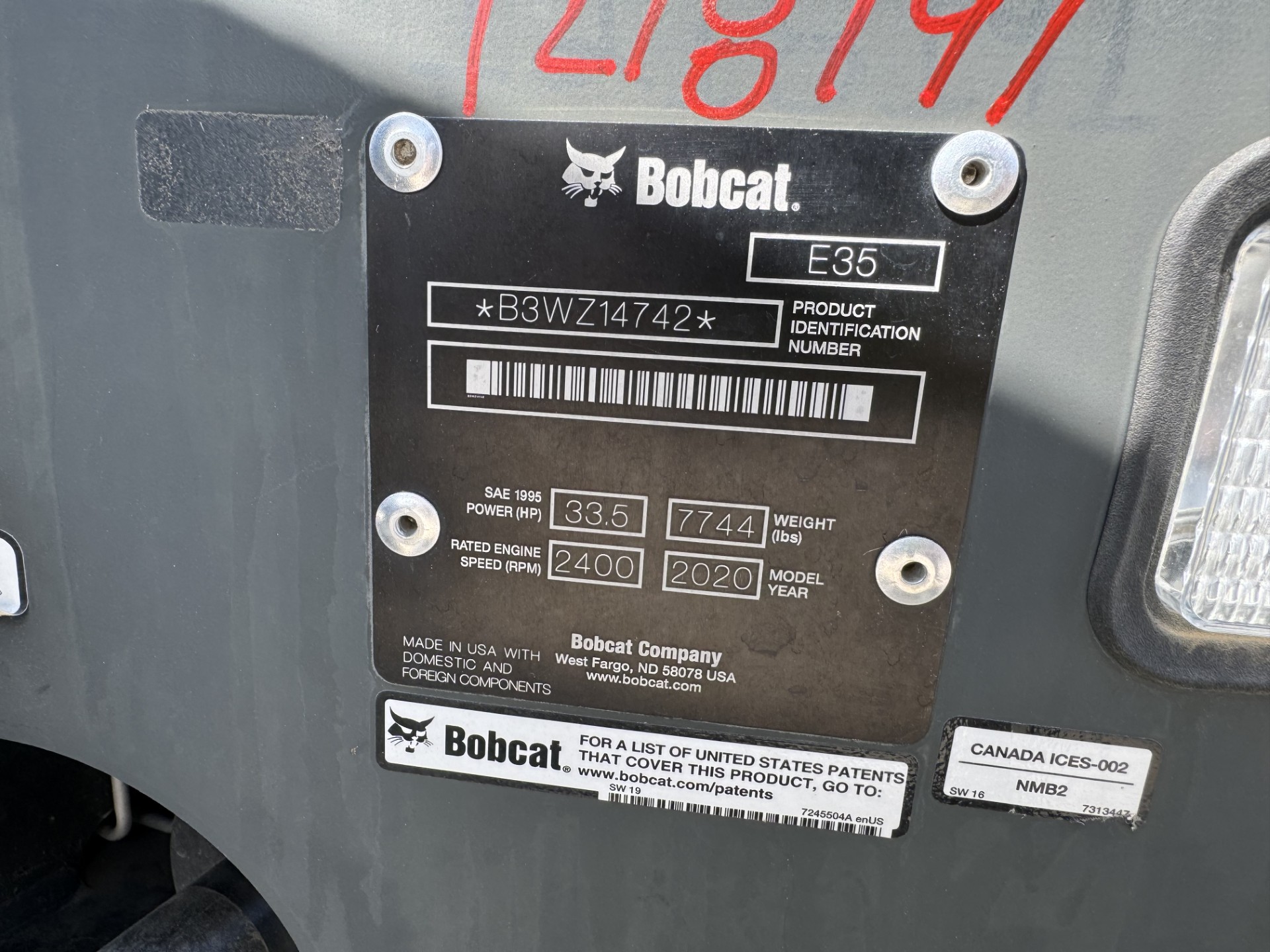

B3WZ14742
Serial #
1218191
Stock #
Bobcat E35 Compact Excavator Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Air Conditioning Optional
Cab Enclosure Optional
Cab Heater Not Applicable
Heater Air Conditioning Optional
Radio Optional
Tail Swing Type Zero
Engine Shutdown Standard
Auxiliary Hydraulics Standard
Secondary Auxiliary Hydraulics Optional
Quick Tach System Standard
Rubber Track Standard
Selectable Auxiliary Hydraulic Flow Standard
Angle Blade Optional
Horsepower 25-33 hp
Bucket Digging Force 7,284 lbf
Maximum Reach at Ground Level 17 ft
Width 69.7 in
Tail Swing Type Zero
Fuel Tank 13.7 gal
Auxiliary Std Flow 16.9 gal/min
Auxiliary Pressure 2,987 psi
Performance
Weight Class 3.6 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 4,690 lbf
Bucket Digging Force 7,284 lbf
Rated Lift Capacity 3318 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 10.1 ft
Max Dump Height 11.4 ft
Maximum Reach at Ground Level 17 ft
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,400 rpm
Horsepower 25-33 hp
Turbocharged Engine no
Optional Turbocharged Engine N/A
Dimensions
Length 190 in
Overall Length in Travel Position 190 in
Width 69.7 in
Height 96.2 in
Height with Operator Cab 96.2 in
