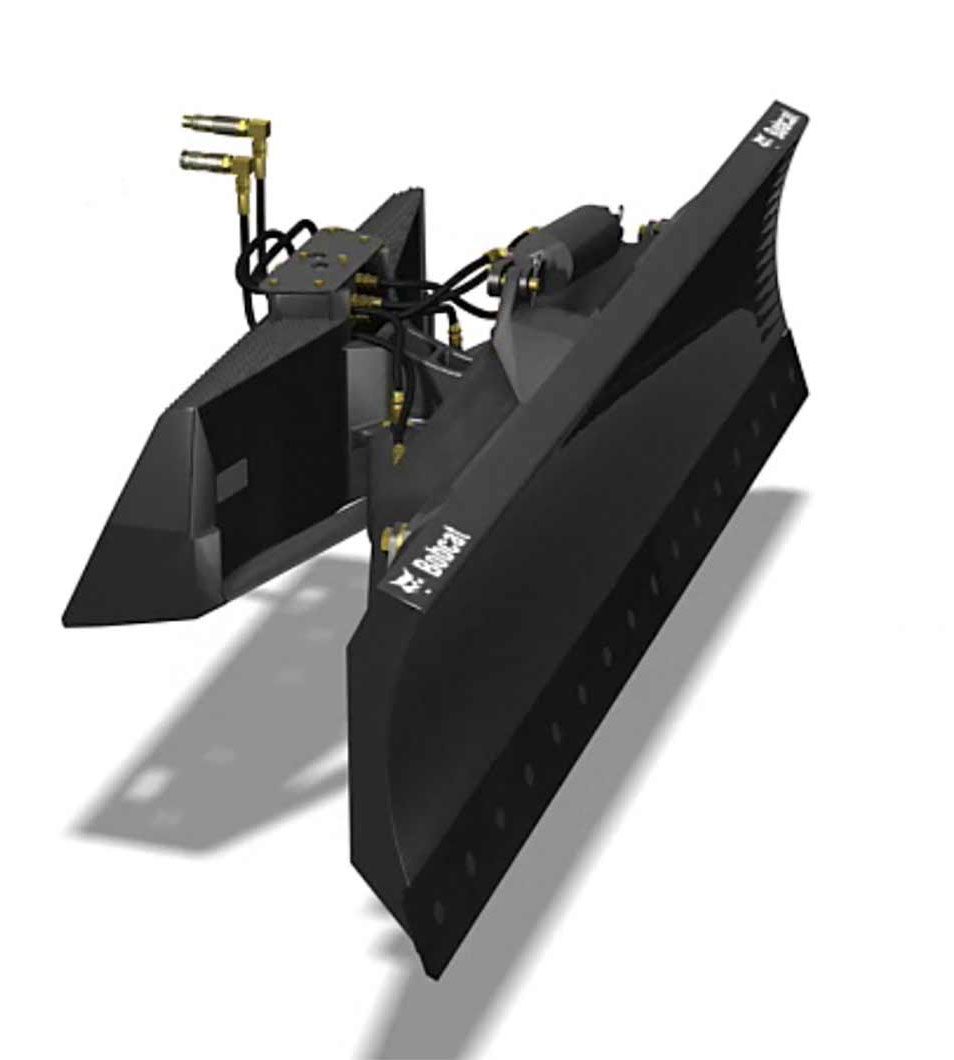

Bobcat Dozer Blade – 90″ (6-Way) Attachment

Excavates and grades material with optimum performance and durability. Turns loaders into mini-crawlers; ideal for construction and landscaping markets. Move large amounts of material quickly and easily – no dedicated equipment required. Adjustable skid shoes provide depth control as well as forward and reverse grading action.

Compatible With:

Loaders

Bobcat Dozer Blade – 90″ (6-Way) Attachment Specs

Key Specs

Operating Weight 987 lb
Length 33 in
Width 90 in
Height 25.2 in
Oscillation
Angle 30°
Blade Height 24.2 in
Skid Shoes Adjustable
Working Width (Fully Angled) 78 in
Cutting Edge (reversible) 0.5 in. x 6 in.
Cutting Edge (reversible) - Length 6 in
Cutting Edge (reversible) - Width 0.5 in

Features

6-Way Adjustable Blade The dozer blade angles +/- 30 degrees and oscillates up to +/– 10 degrees, with electric-over-hydraulic controls for on-the-fly adjustments.
Adjustable Depth Guides Mounted on the dozer blade attachment, adjustable skid shoes guide and control the depth of the dozer blade.
Bi-Directional Operation The dozer blade can be operated both in forward and reverse for optimum grading action direction.
Cast Design Designed for handling the toughest applications, the 96-inch dozer blade features an all-cast design for maximum strength. It quickly becomes a dozing machine when combined with the tractive effort of a compact track loader.
Fingertip Control Featured on the 80-inch through 96-inch models, fingertip controls allow for easy, efficient and comfortable attachment adjustment
Reversible Cutting Edge The reversible cutting edge increases the versatility of the attachment while providing better uptime protection and more time between blade exchanges.

Bobcat Dozer Blade – 90″ (6-Way) Attachment
